Series 2 109…….the dirty work

IMG_1221

I have a break from the Street Tracker project while waiting for parts, so back to the 109. The body is still at the blasters, next up is remove the engine and get it ready for rebuilding. The drive shafts were pulled first…….pretty sure there was 50 years of grime and paint on both…….the latest paint job being brushed on robins egg blue!

IMG_1227

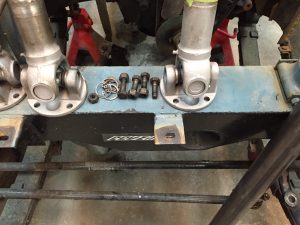

The shafts were first rinsed in a parts cleaner bin, then washed in a high temp, high pressure parts washer, then a little blast cabinet work, then a 4 inch stainless brush on an angle grinder…………..nasty work, but now they’re ready for paint.

IMG_1222

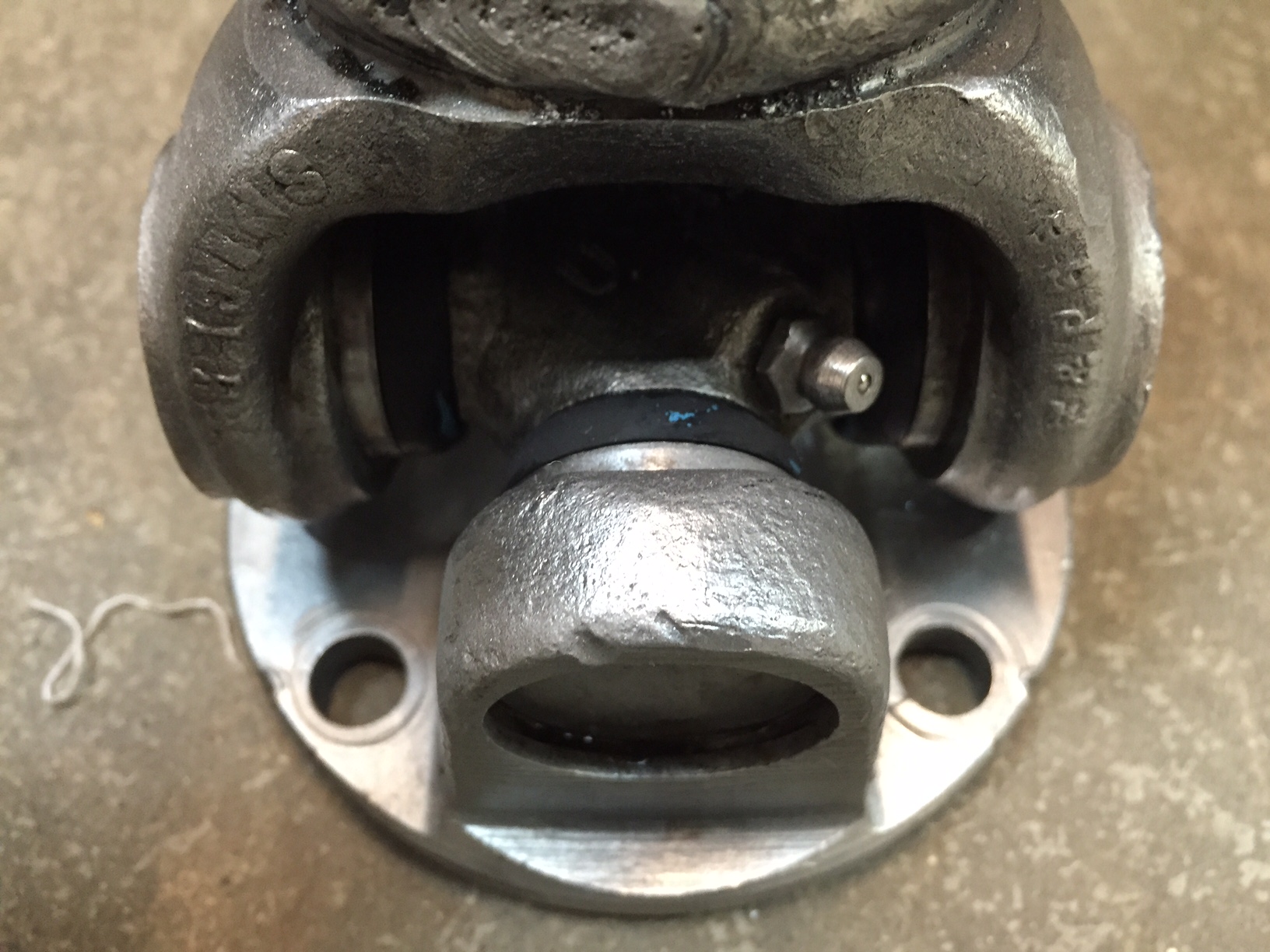

U joints are all healthy so they’ll stay in place, I will replace the rusted retainer clips with new. The slip yoke dust caps did not fair as well, both need to be replaced with new parts. Still a speck of the lovely blue pain left there!

IMG_1248

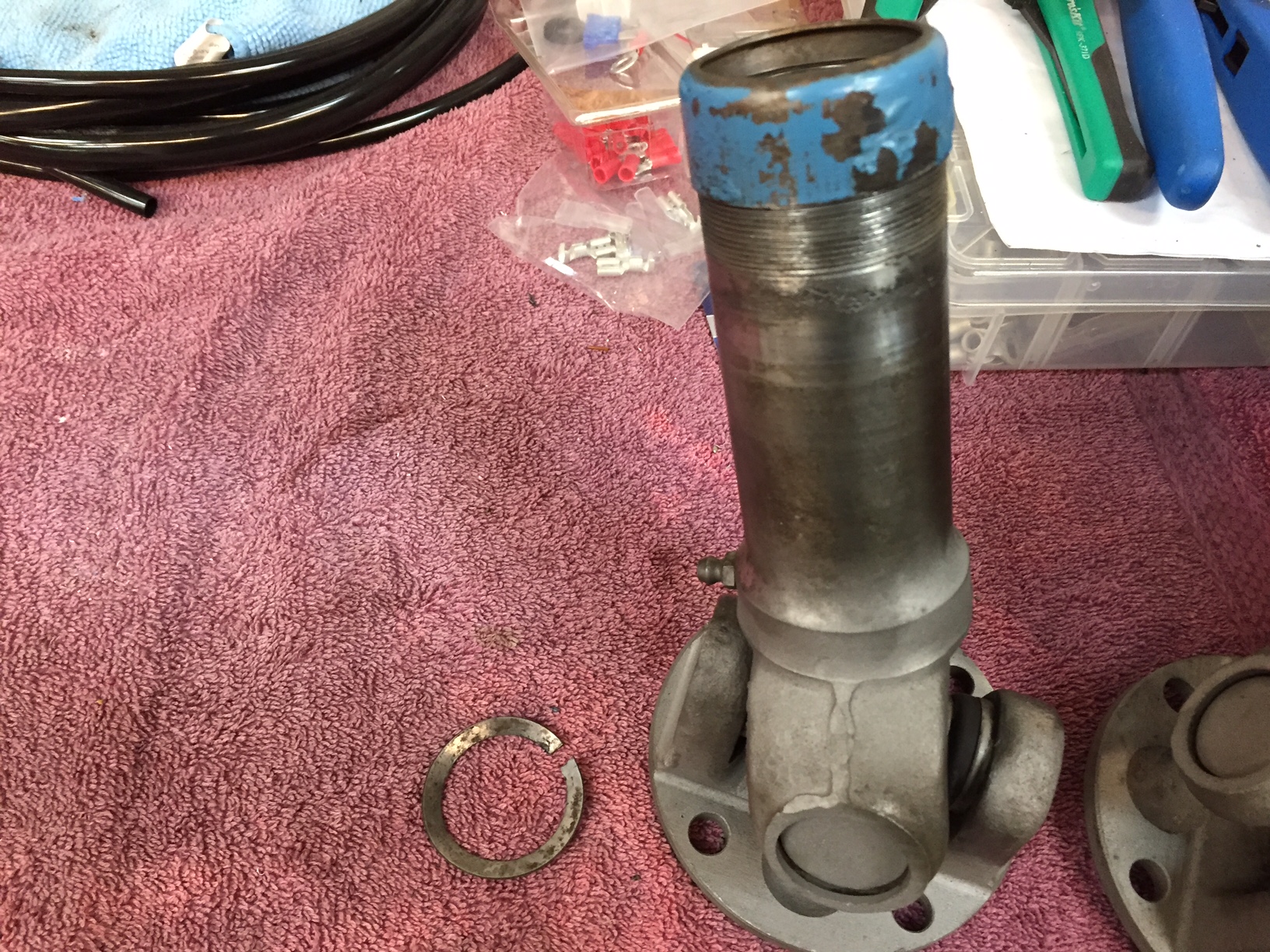

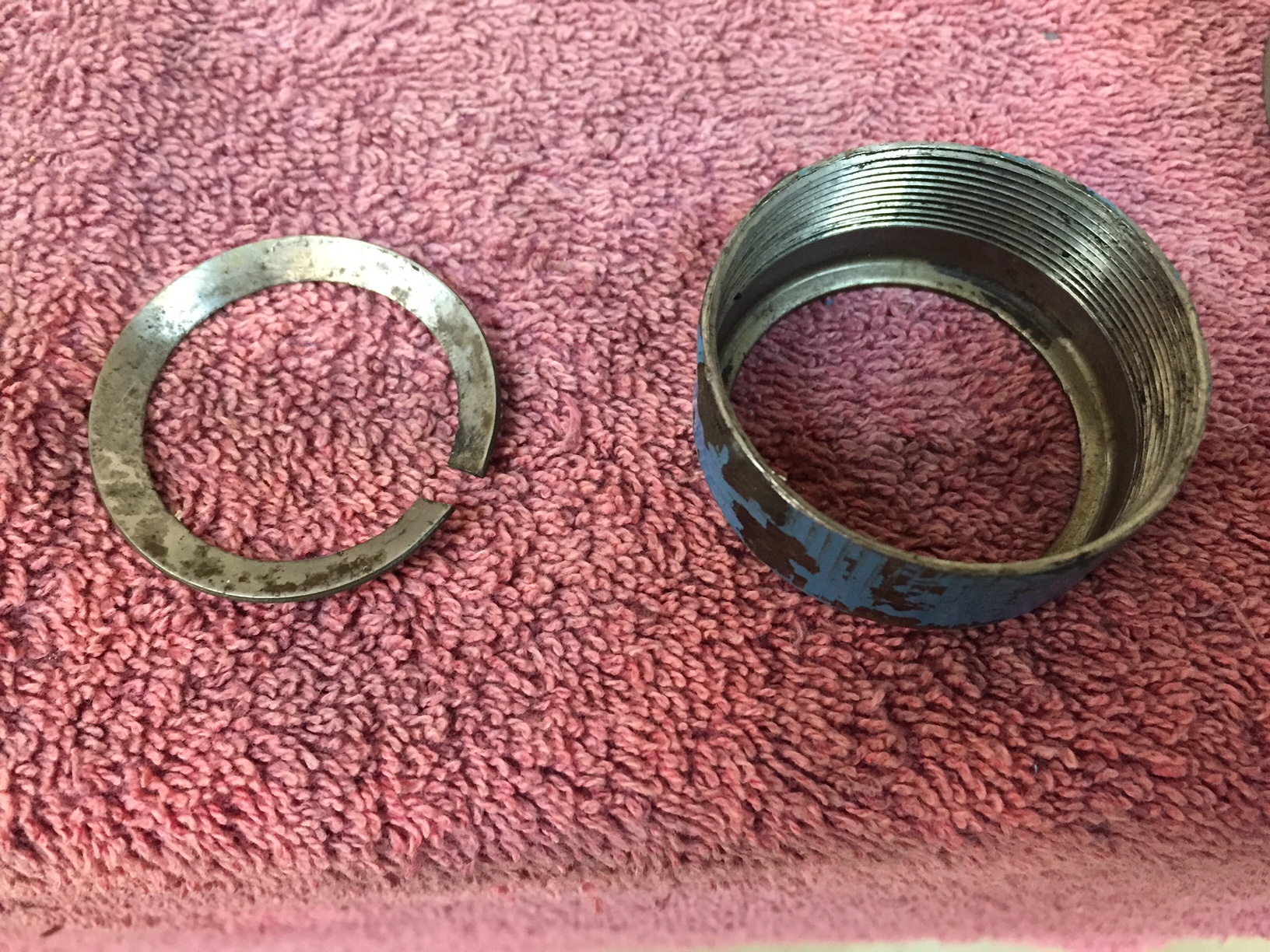

One of the still blue mangled dust caps and retaining ring.

IMG_1247

To the trash bin.

FullSizeRender

Replacement dust caps, Spicer part number D2C available at your local heavy truck (Peterbilt, Kenworth) sellers parts dept., or on-line at dennysdriveshaft.com.

IMG_1223

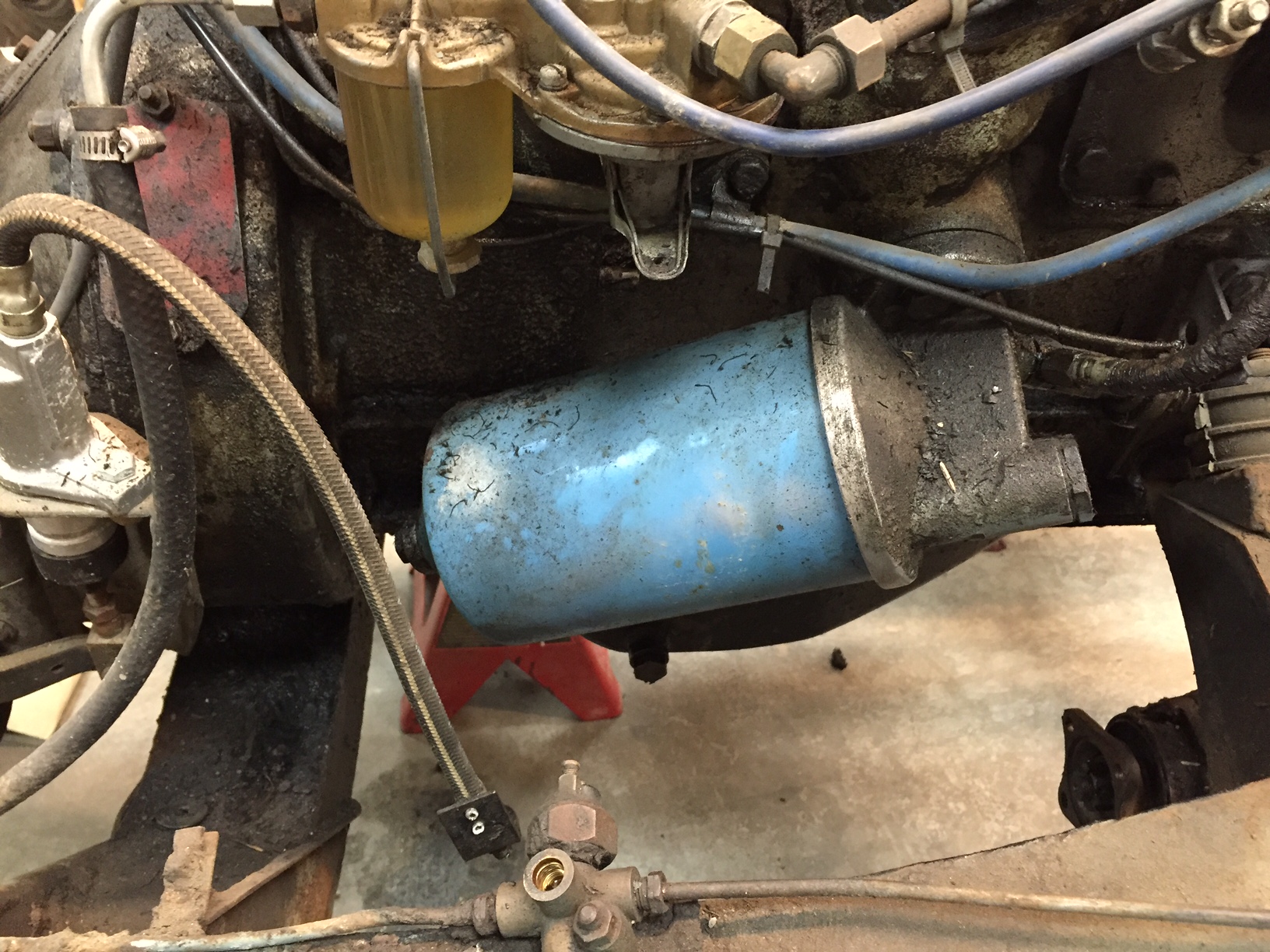

Another example of the ubiquitous blue paint! Any place a brush could reach got the “blue treatment”.

IMG_1228

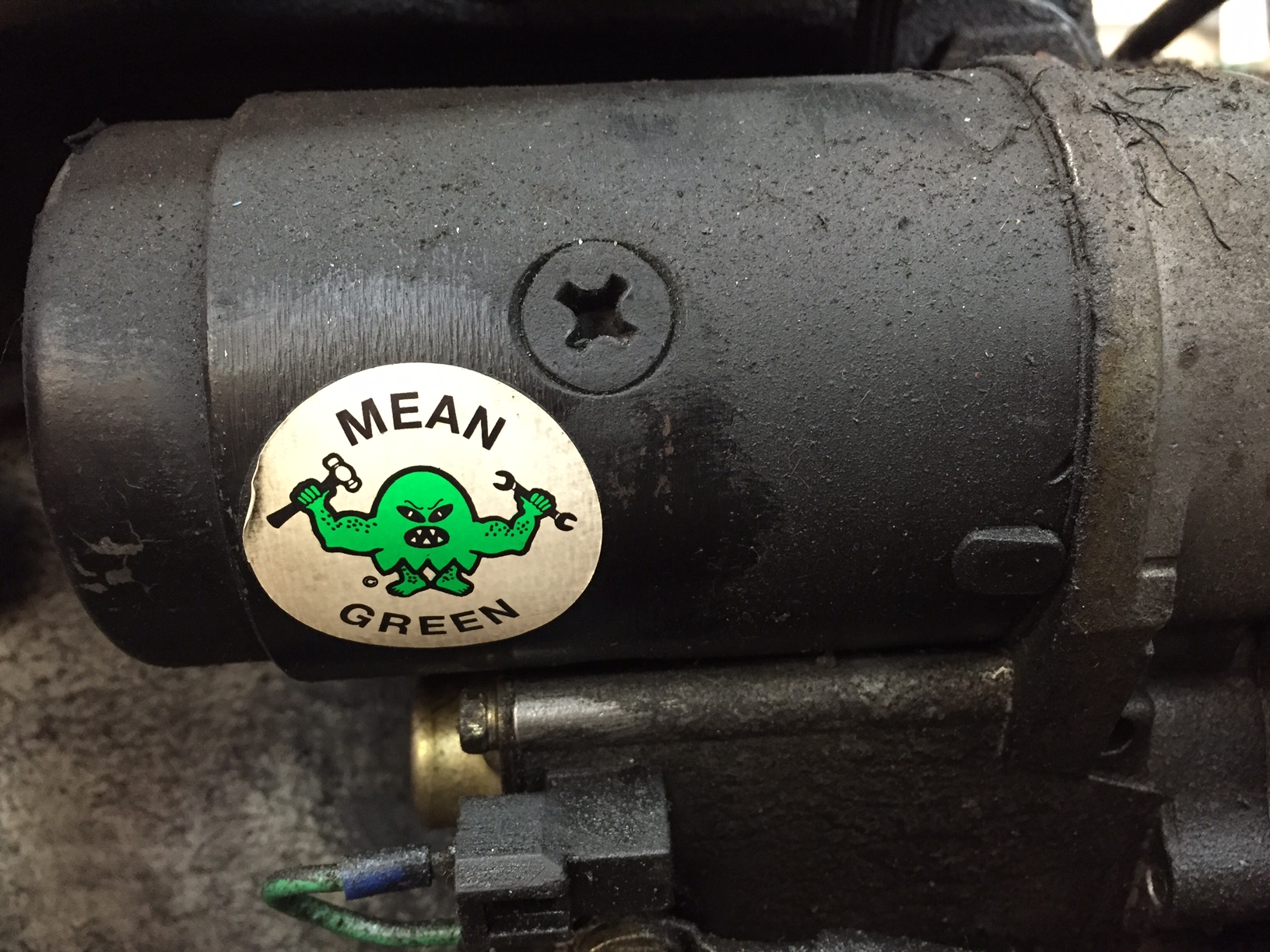

This was a nice surprise, a Mean Green gear reduction starter. I installed one of these on the Merc……great little starters………….and it didn’t get painted blue.

IMG_1249

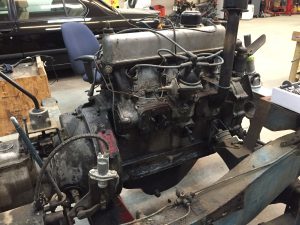

The engine pretty much stripped and just about ready to come out.

IMG_1250

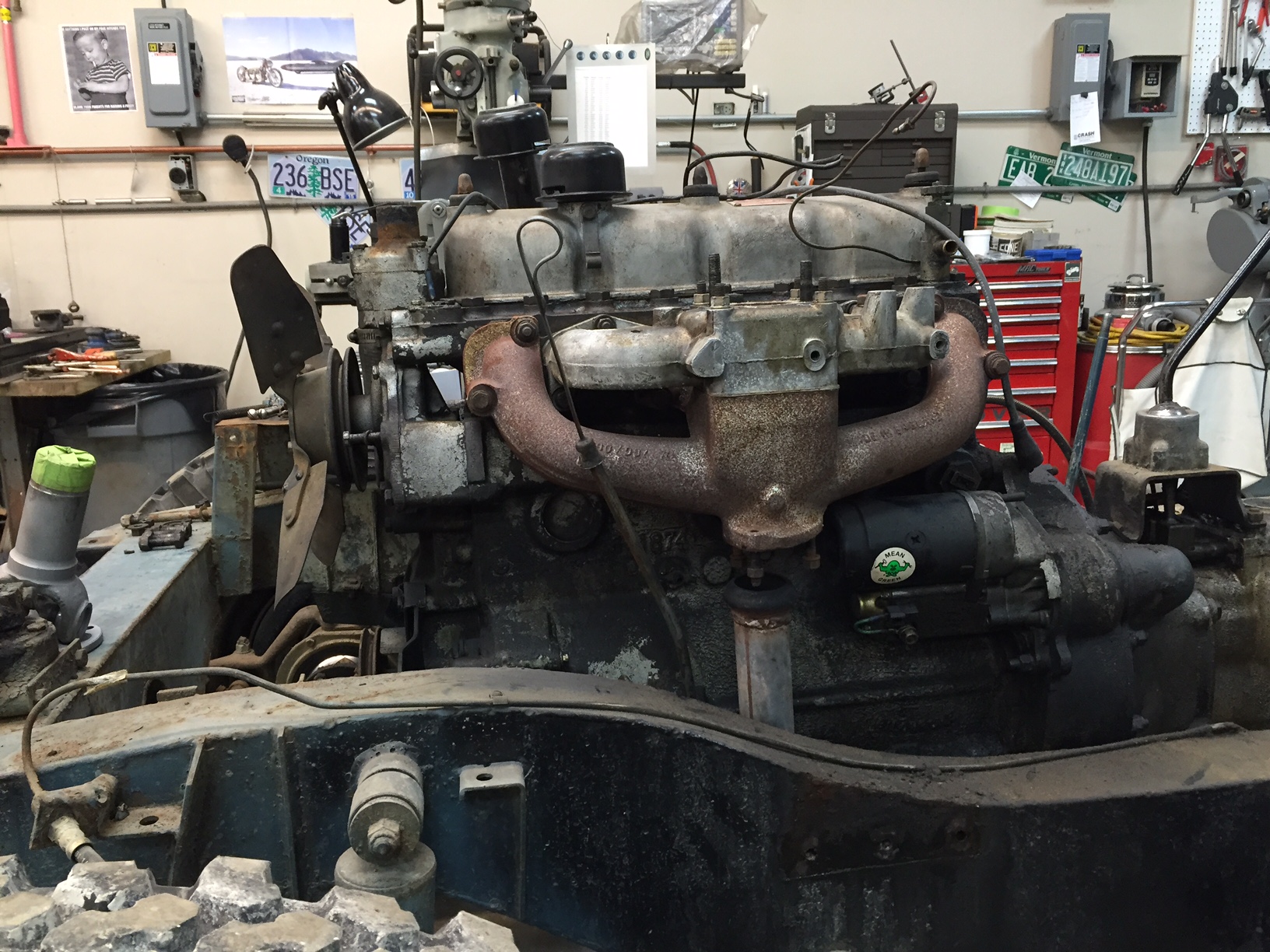

Time to rig up the hoist and get a pallet ready. It’s best to strip the engine of ancillary components while sitting in the frame like this……….it’s at the right height, easy to get to and work around (easy on the back for us old dudes).

IMG_1251

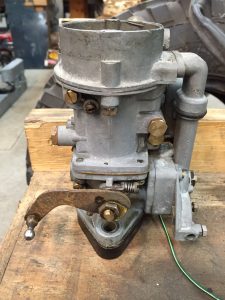

Solex degreased and ready for a rebuild also………the carb is all there and in very good shape already, so this will make a great addition to the fresh motor.

img_1264

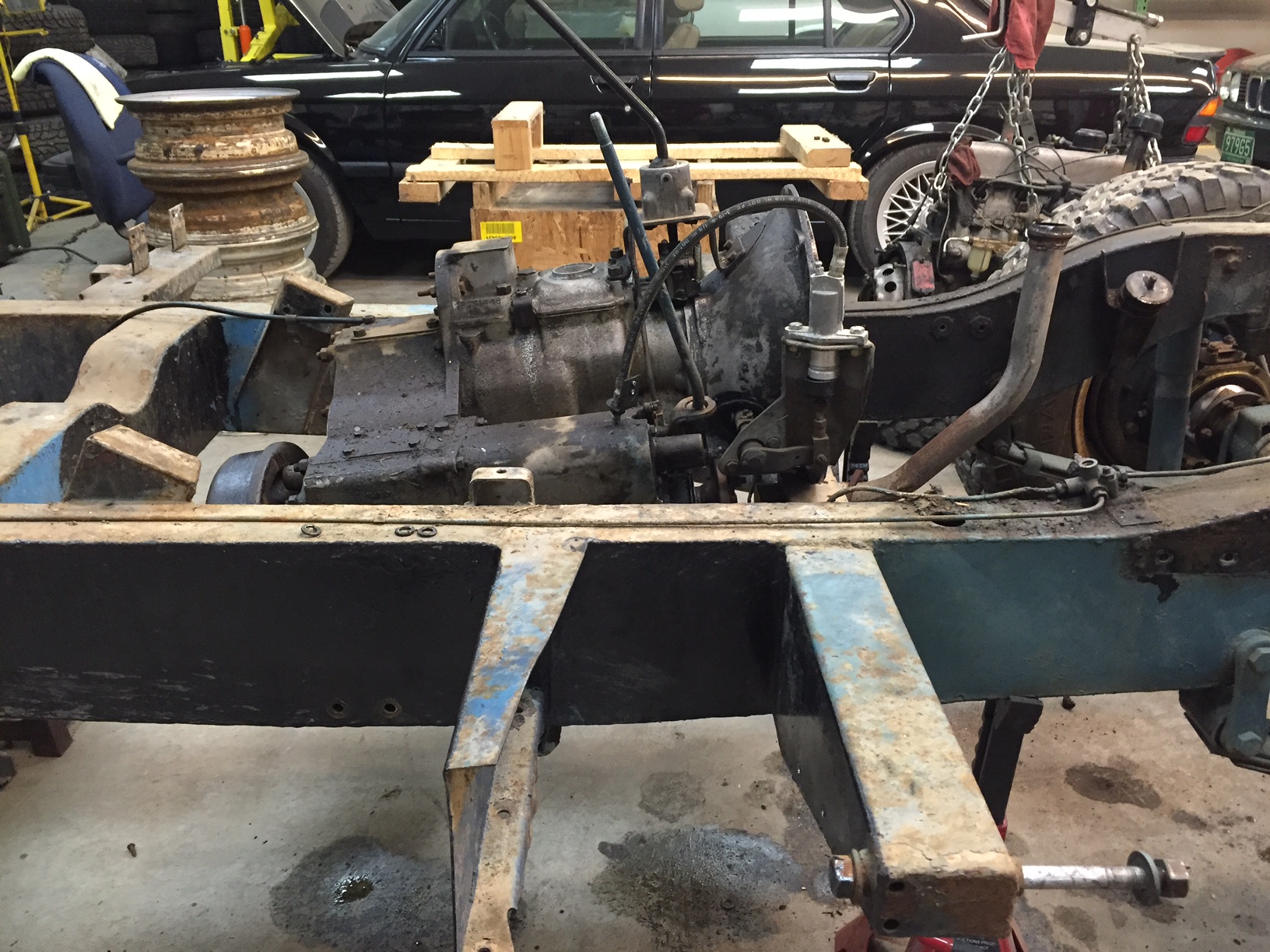

Engine is out, now the tranny……..years of grime need to come off.

img_1267

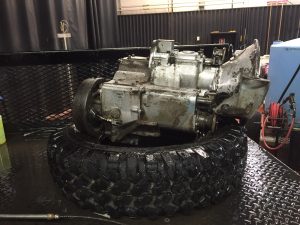

Out and in the bed of my truck……..first coating of grease has been removed.

img_1272

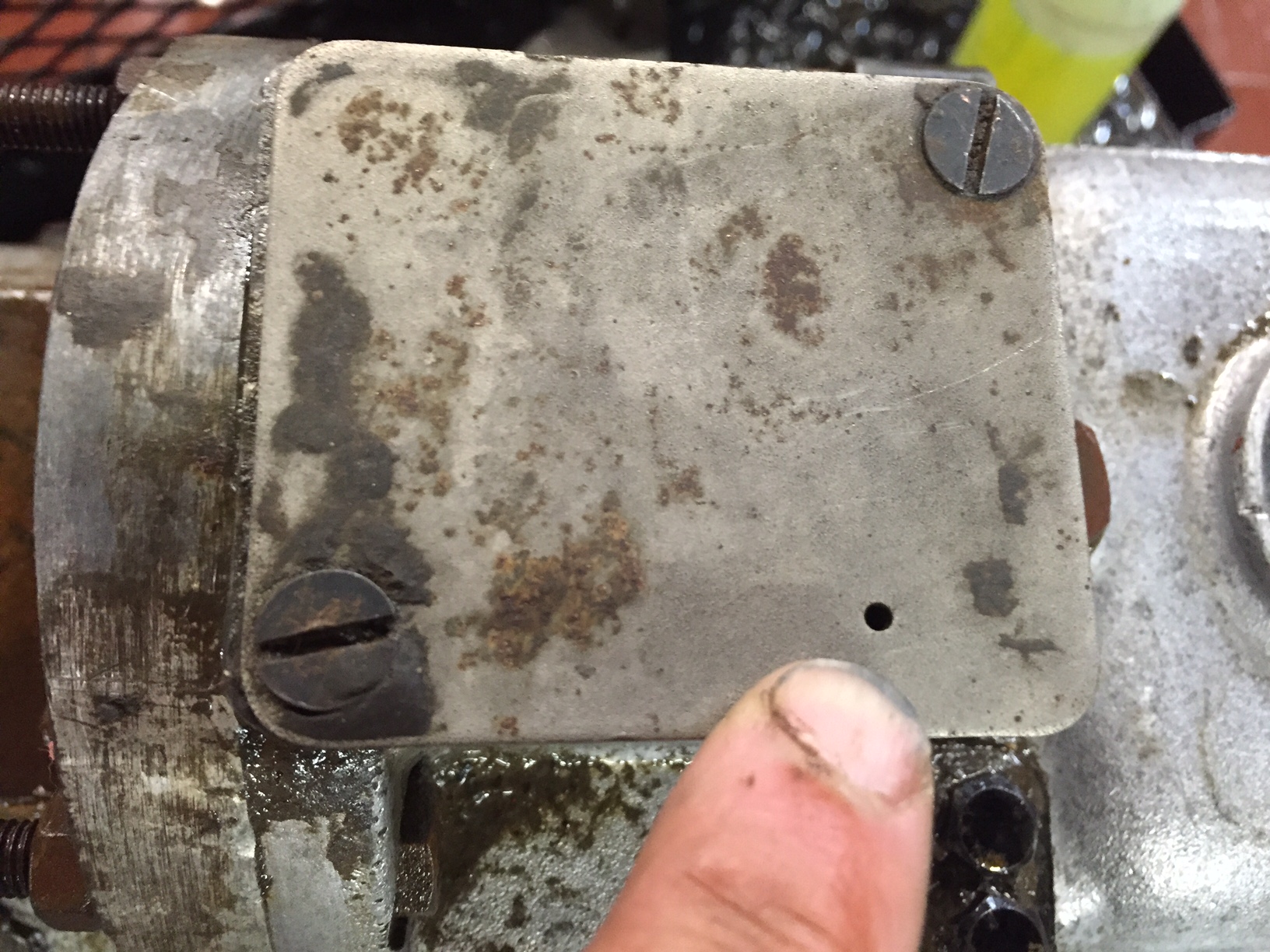

If you decide to do this it doesn’t hurt to tape up this breather hole on top of the tranny.

img_1271

So, a 55 gallon drum of this stuff, Citra-Sol, some brushes, scrapers, and power washer…….fun stuff!

img_1270

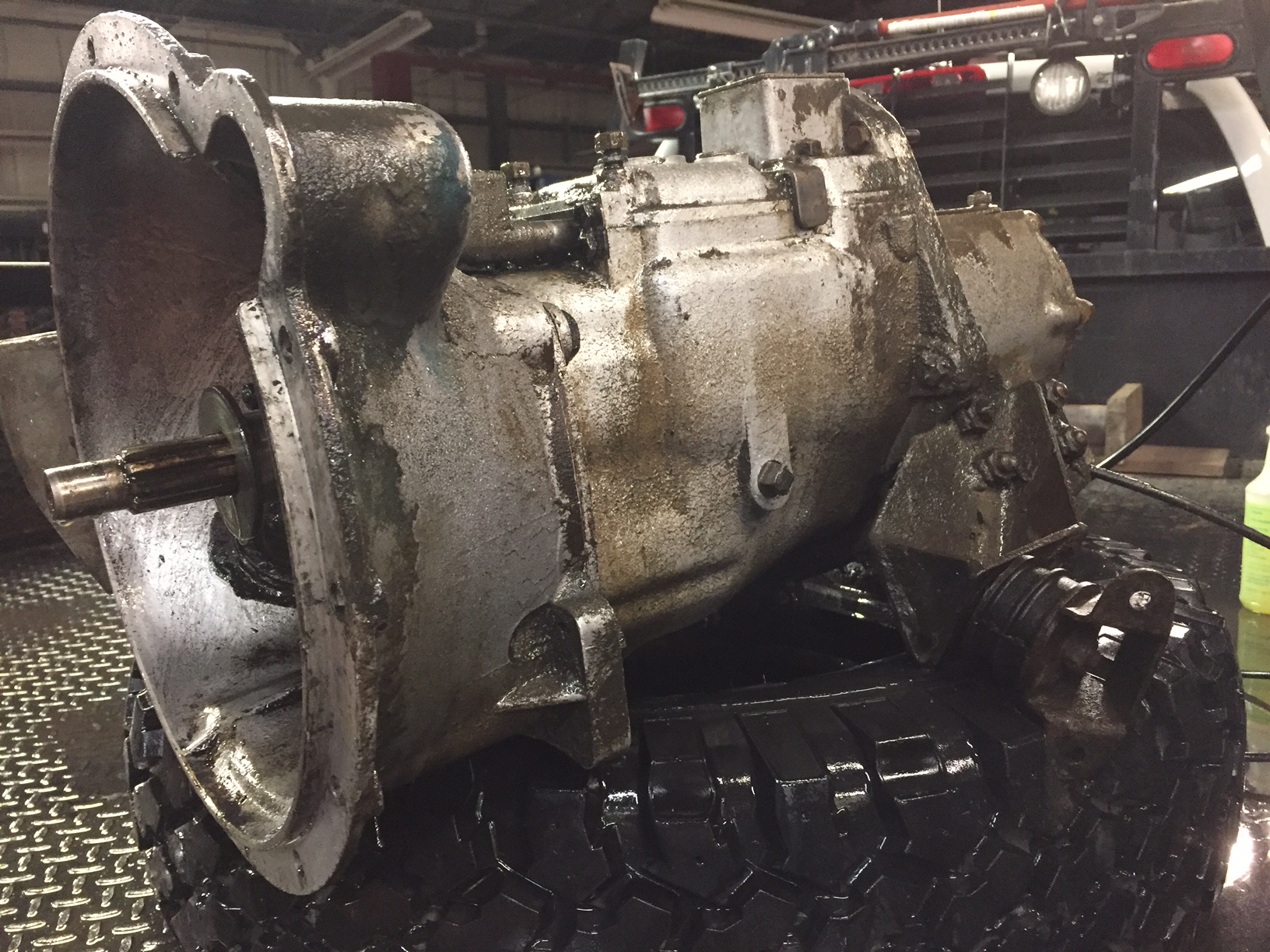

Getting there……….this is about a three hour nasty job.

img_1273

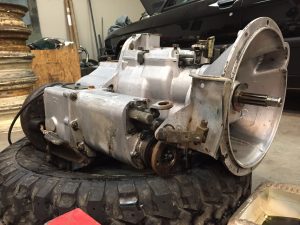

Pretty well cleaned and back in the shop.

img_1274

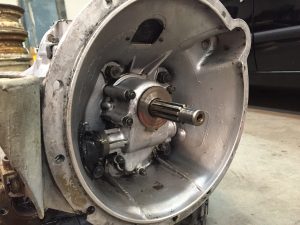

The next trick will be adapting this bell housing to a Series 3 full synchro gearbox so that I can maintain the Series 2/early 2A throwout assembly, thus not requiring  a cut into the Series 2 frame cross member for Series 3 clutch slave clearance.
