T100R Electronics…….The Beginning

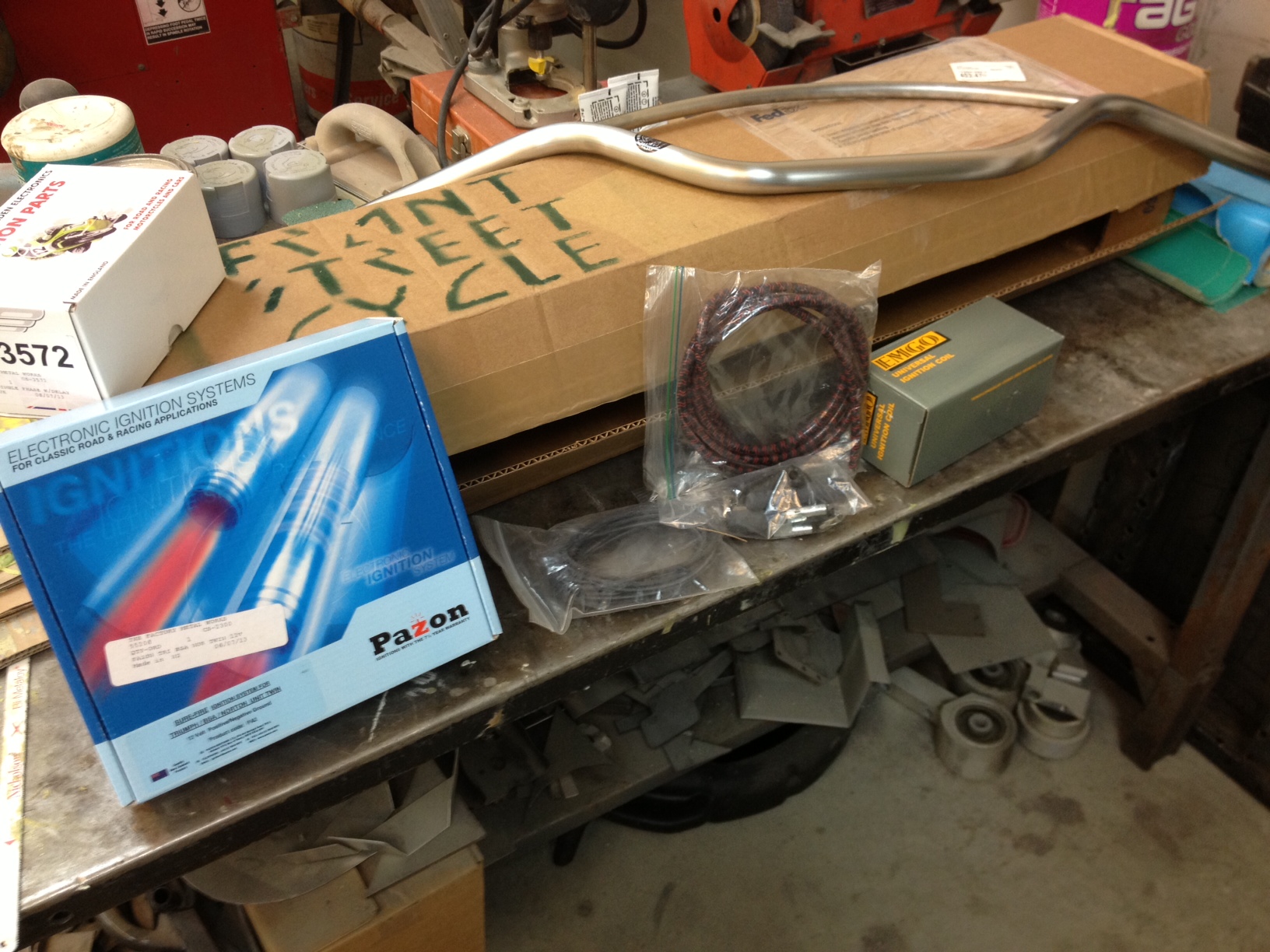

photoThe stuff…..all the electronics came from the guys at The Factory Metal Works. Pazon electronic ignition, twin lead 12 volt coil, and Boyer battery eliminator.

photo 2

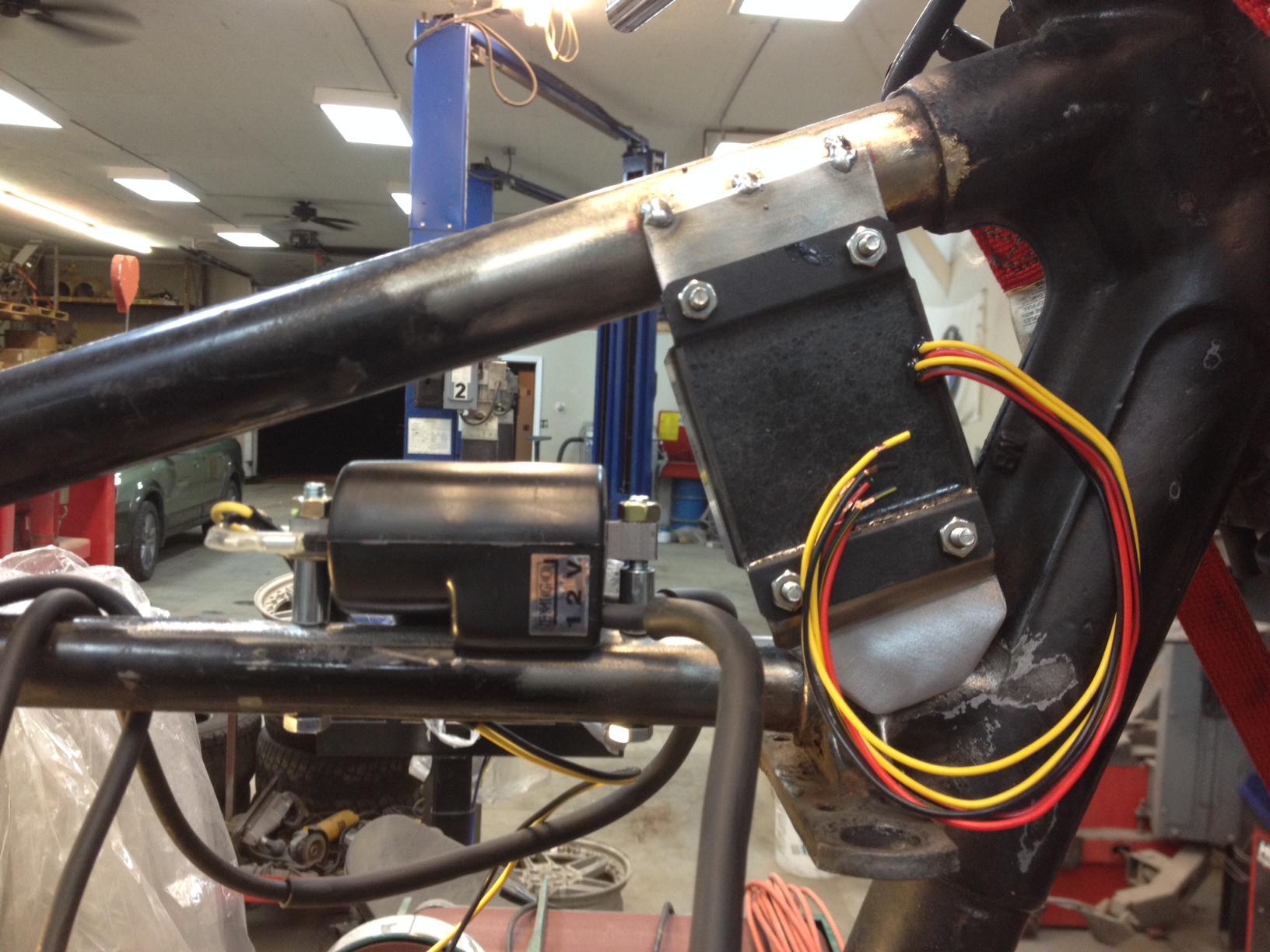

Had to cut out the original coil mounts, drilled the frame to mount the single coil, and made some mounts for the Boyer eliminator. It’s just tacked in for now, I still have to find a spot for the small ignition box.

photo 3

Left side

photo 1

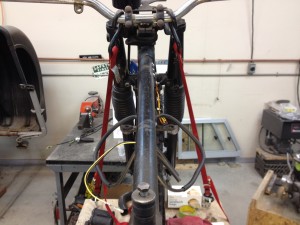

Top view…….everything tucks neatly under the frame top tube. Once I’m happy with everything and the bike is down to just frame I’ll get it on a welding table and tig weld the mounts so they look pretty
