200TDi Intercooler Solution

I think I’ve seen twenty different solutions to this problem, ranging from an all out custom made Bell intercooler to generic ebay junk to a salvage yard Saab 900 intercooler. I looked into all of the above solutions and then decided to go my own road. The stock D90 intercooler that came with the engine was in good shape, all I had to do was make it fit. In stock form the intercooler would not fit in front of my already recessed radiator. My solution was to reconfigure the intercooler. I cut the top center port off, made a patch and tig welded the hole shut, bored a new hole for the amputated port on the side of the intercooler tank and tig welded it in place. I now had a stock intercooler that was slim enough to fit in front of the radiator, would sit under the grill mounted headlights, and was easy to plumb around the left side of the radiator. At this point all I needed to make was a couple of mounts.

IMG_7865

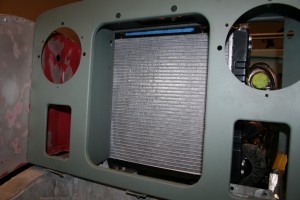

The space I was working with.

IMG_7861

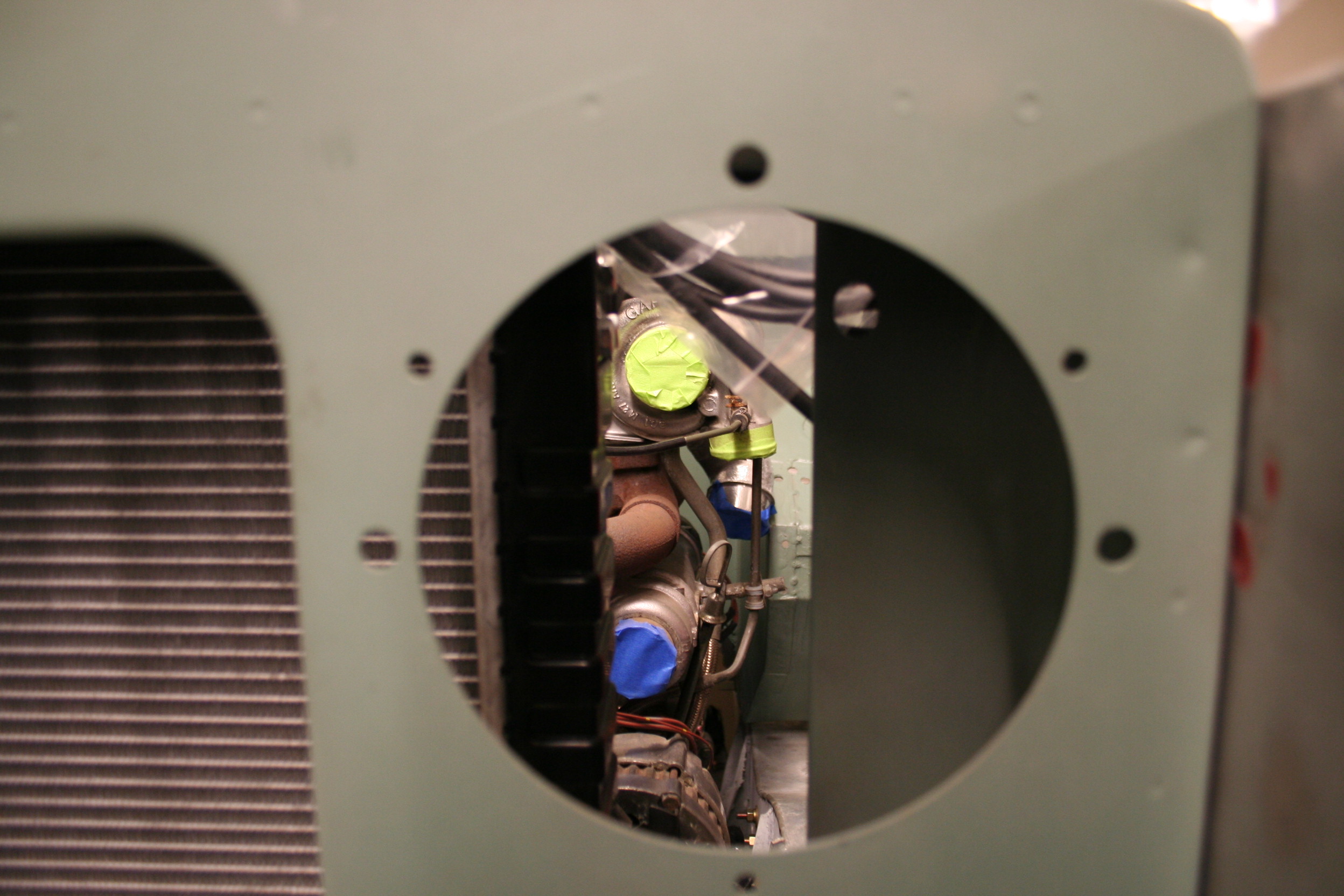

Plumbing would have to fit behind this headlight bucket and between the radiator and the grill support.

IMG_0909IMG_0929

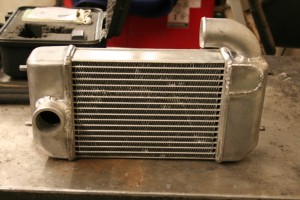

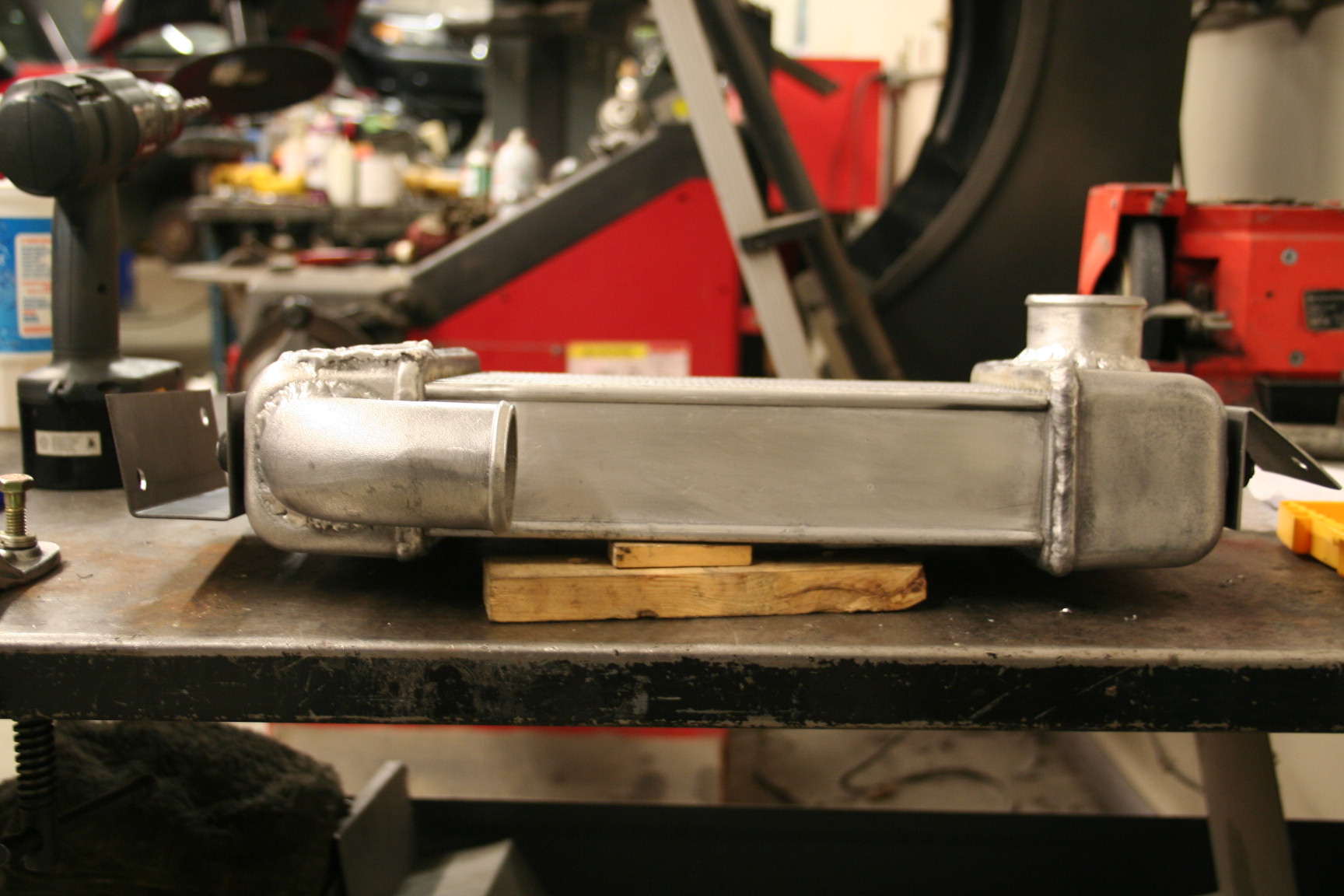

The reconfigured intercooler.

IMG_0928

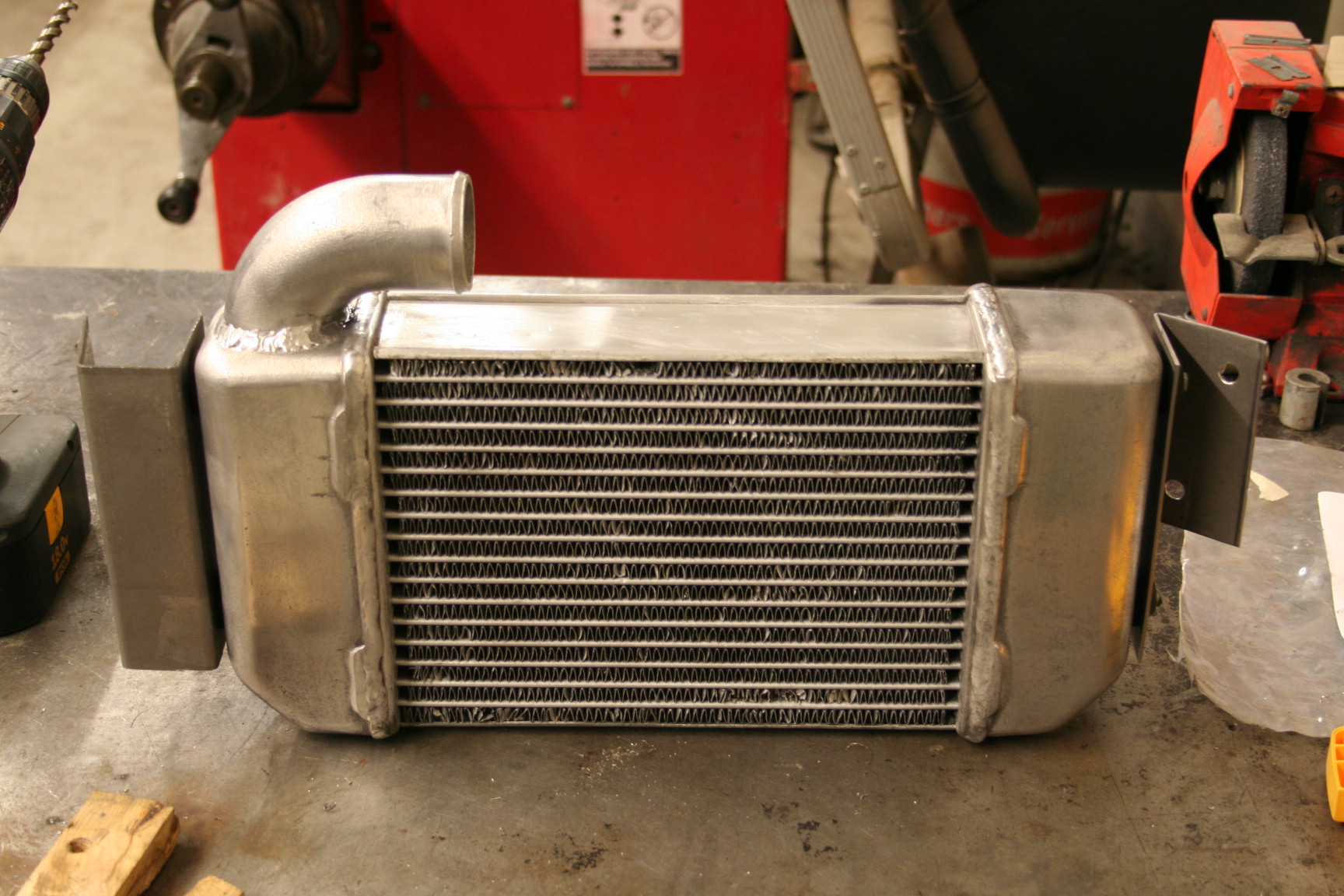

Mounts bent up and in place.

IMG_0931

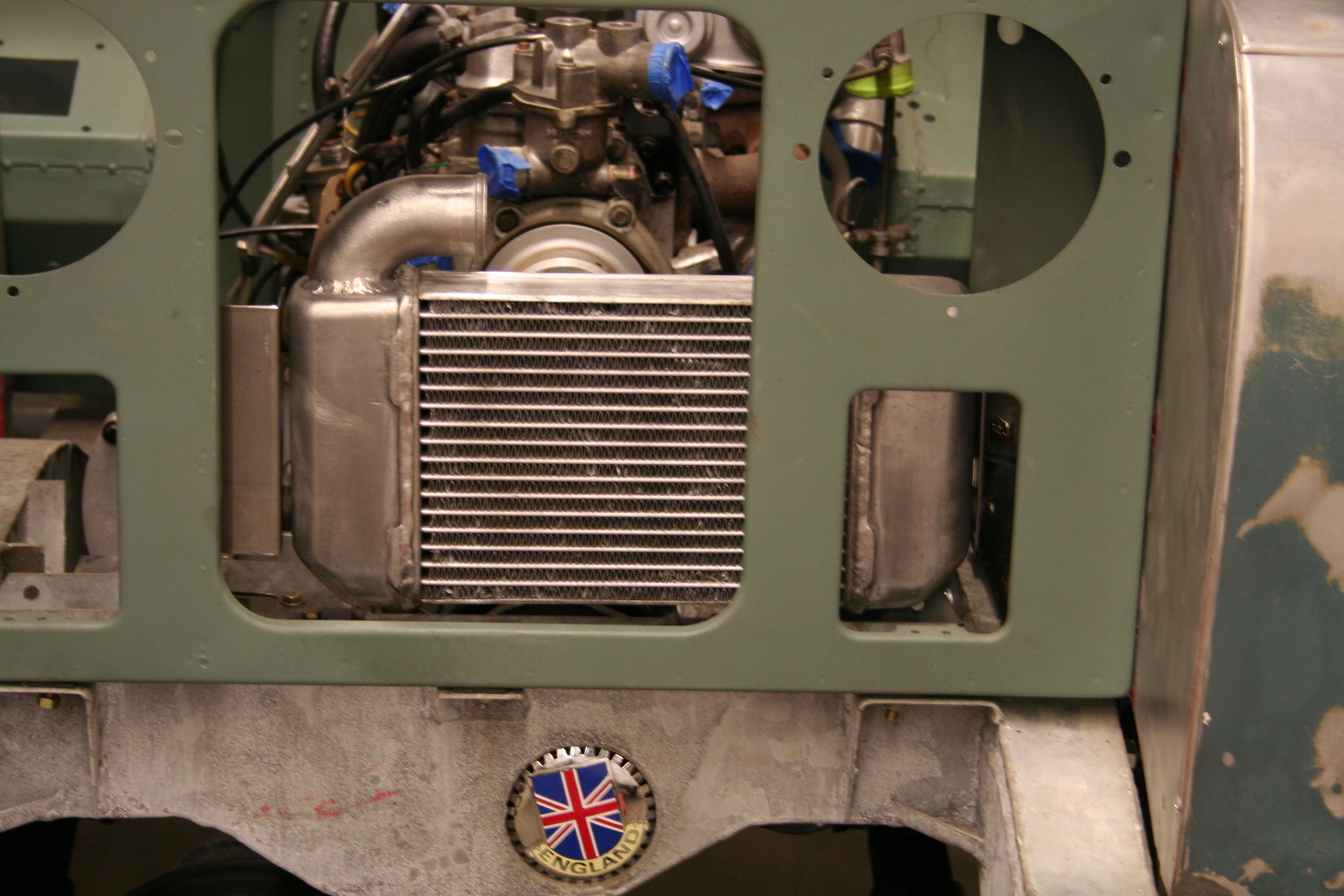

And in. Functional and inexpensive solution.

IMG_1054

IMG_2547

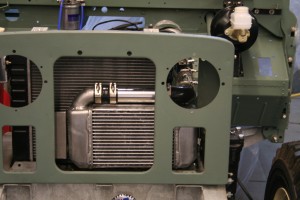

Plumbed.
