Restoration Details………..The Little Stuff

img_1302

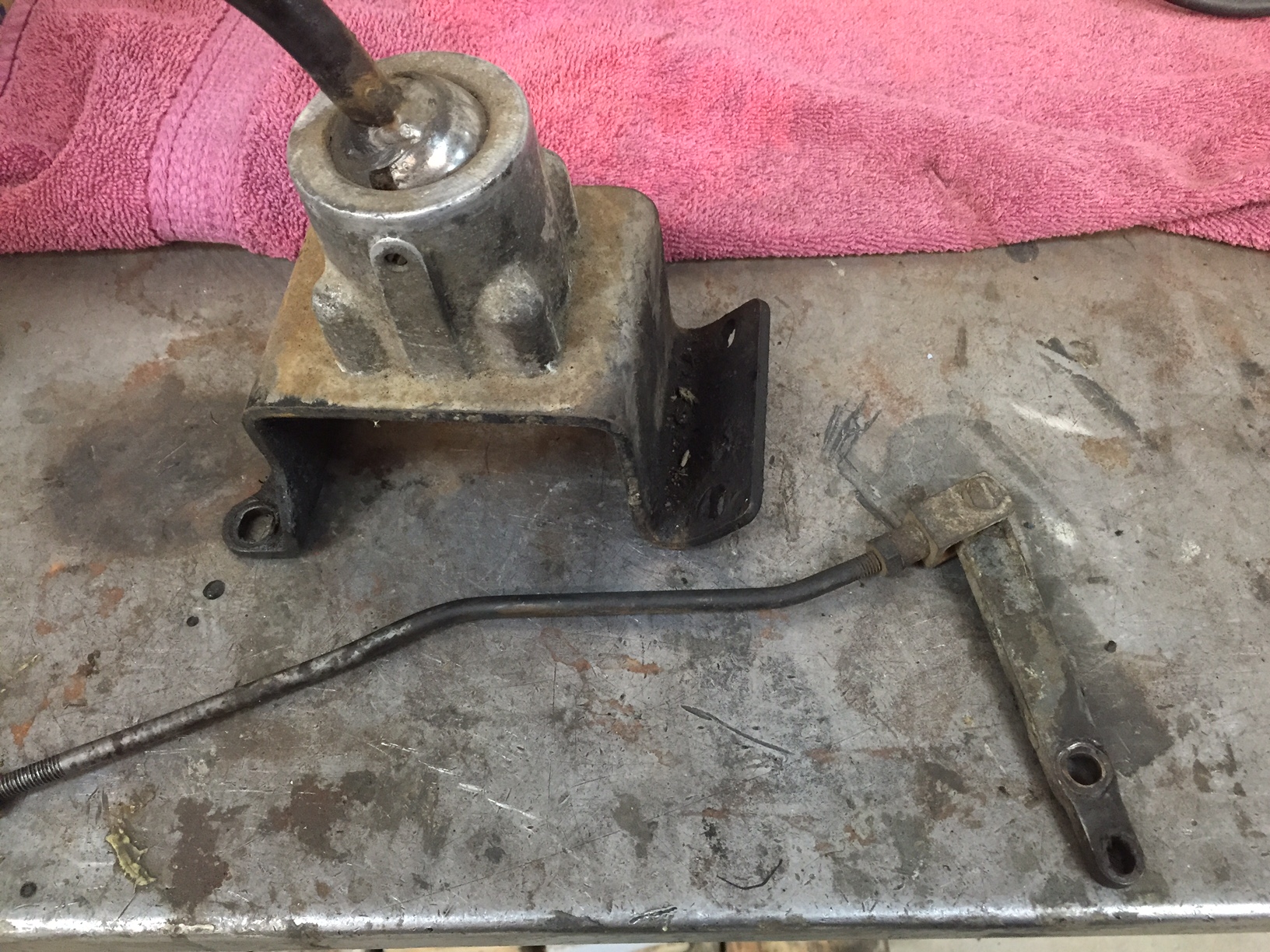

Restoration of some parts that usually get “spray bombed” with Rustoleum, or completely ignored, on the average EBAY “frame off, ultra rare, original low mileage, one owner, always stored in climate controlled garage” Series Land Rover.

img_1299

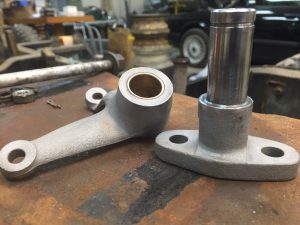

This is the parking brake relay….it was in about the same condition as the shift levers pictured above. This part is mounted on the inside of the frame rail and takes a fair amount of abuse………..and you will see them left in place and painted over time and again, and undoubtedly stuck in place. If this part doesn’t pivot correctly on the shaft (notice that bronze bearing in the pivot), you’re parking brake will be virtually impossible to adjust correctly.

img_1307

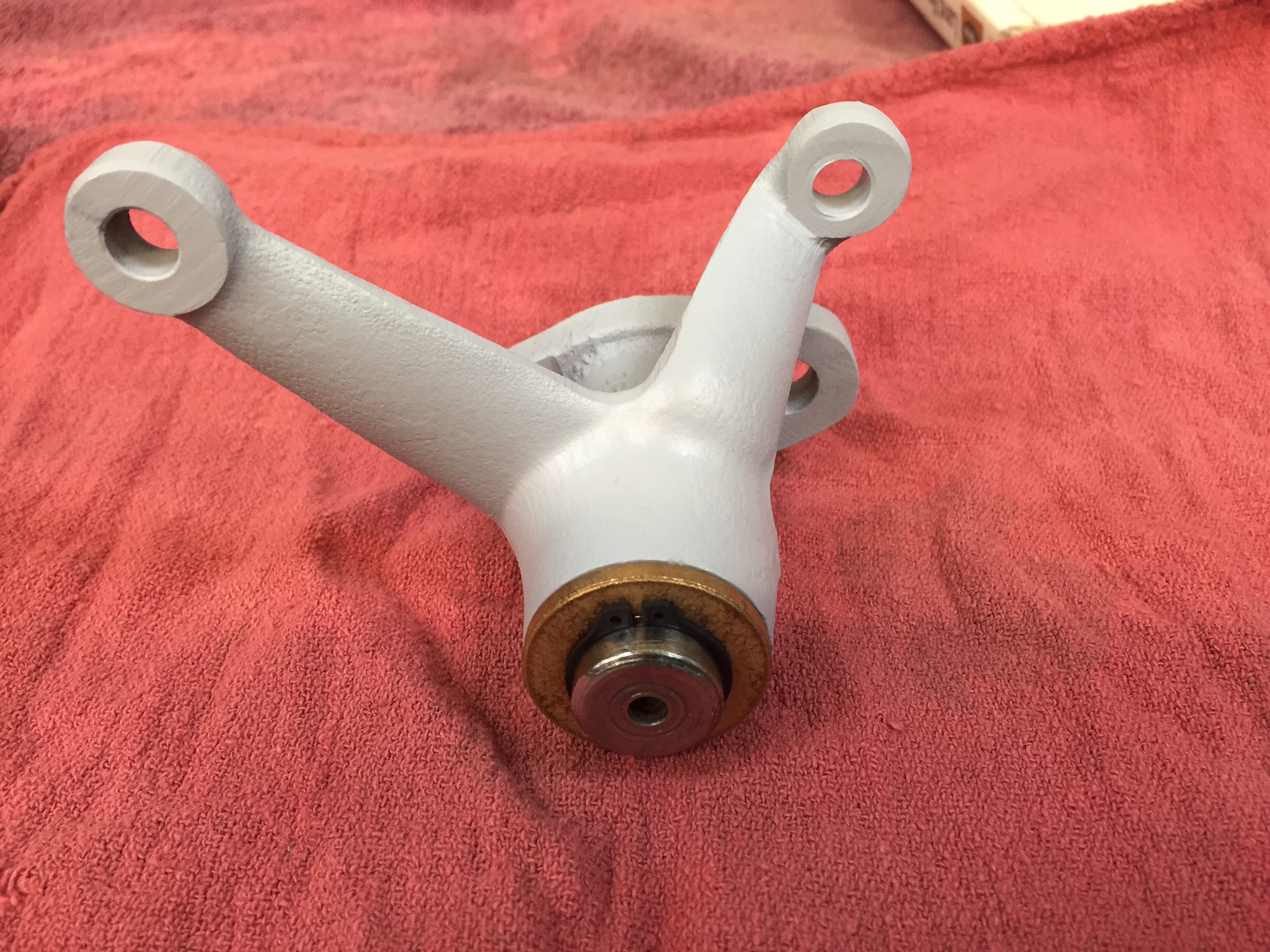

Restored correctly, bronze sleeve polished, new bronze bushing & clip, and primed with SEM self-etch…………ready for some shiny black paint and will work for another few decades.

img_1316

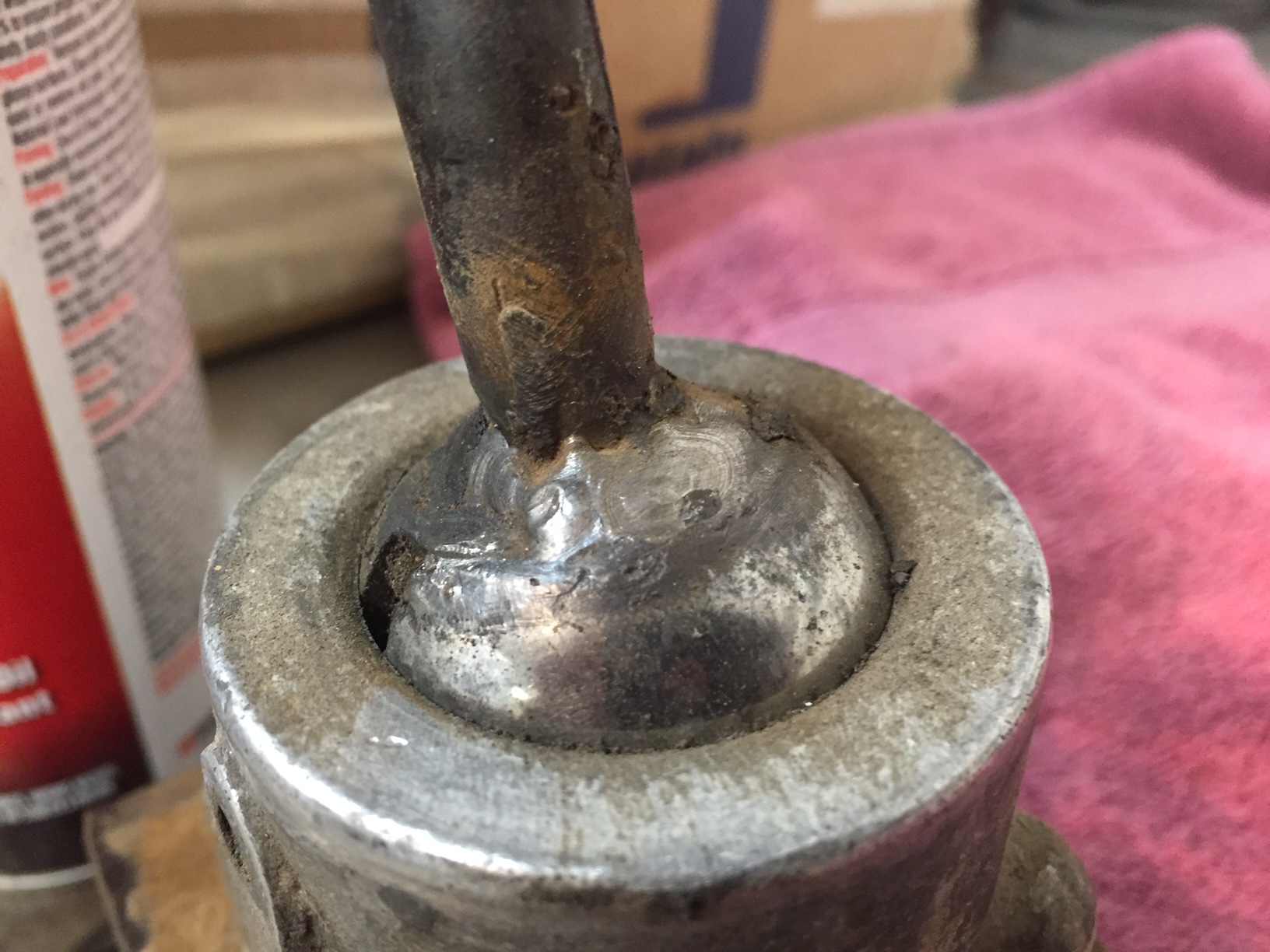

Main gear lever, previously broken off and poorly repaired…….a very common occurrence in Series trucks. This will get scrapped in favor of an NOS part from Pangolin 4×4.

img_1317

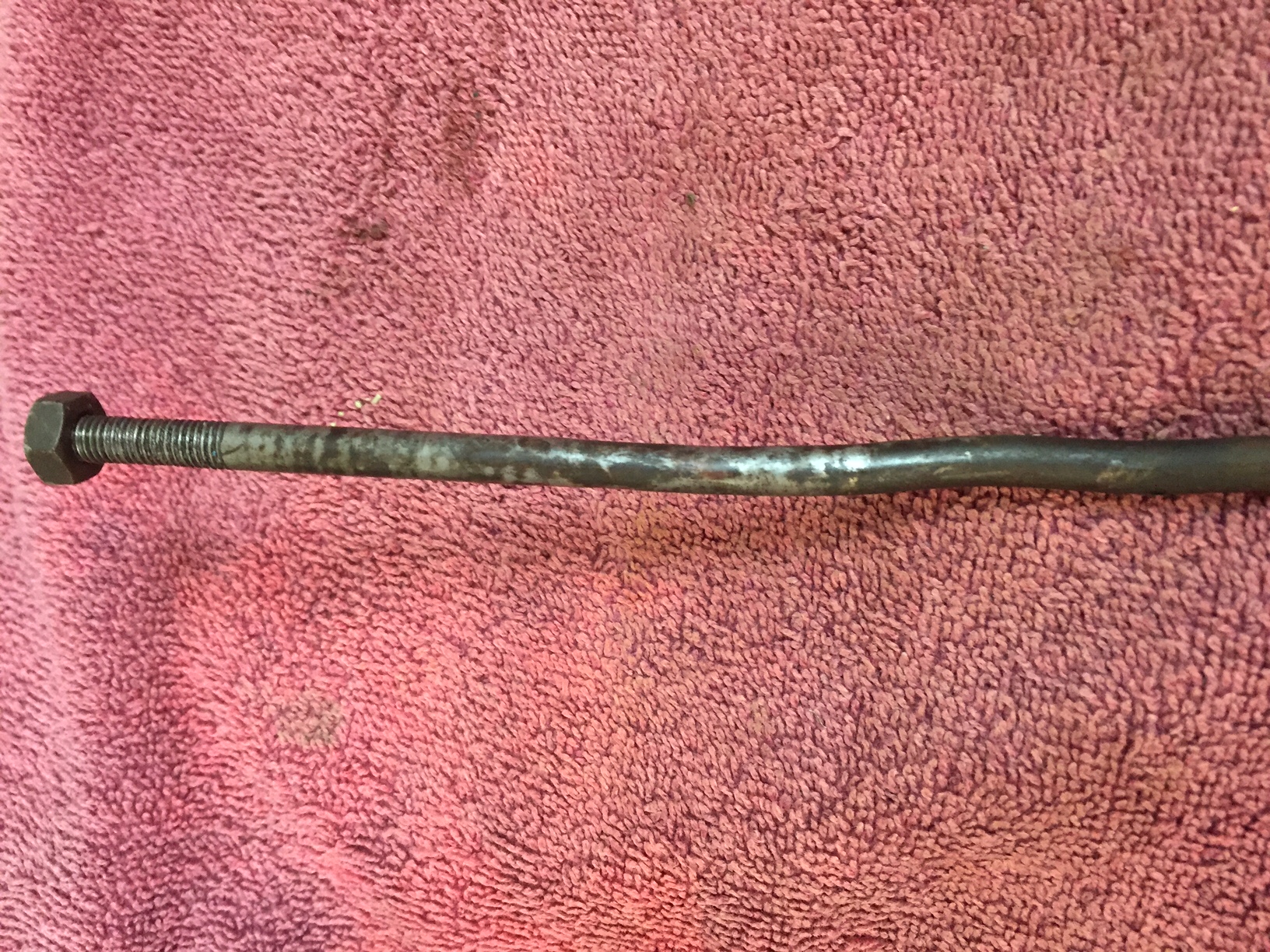

4-Wheel Drive Selector rod……same story, bent in multiple places, will be replaced.

img_1304

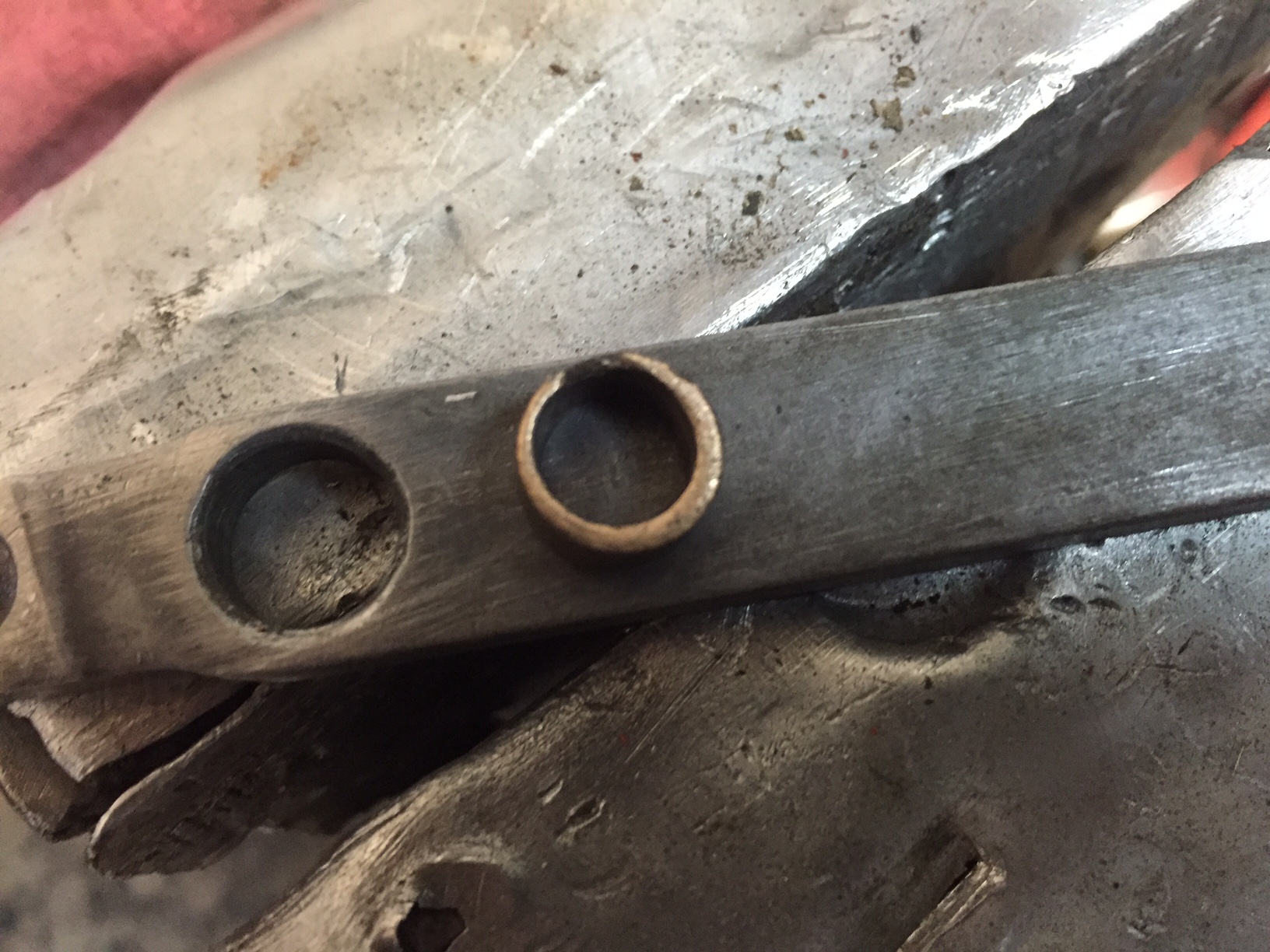

Lever assembly that links 4WD selector rod to transfer case……..the pressed in bronze bushing is nearly always worn out and NLA (and guaranteed to be ignored by the EBAY restorers). This is the typical wear, the bushing wears to an elliptical shape, often wearing through the bushing and ruining the entire lever. The result in slop and vibration in the 4WD selector rod. This assembly was in good shape, nice and straight, it just needs a new bushing, easy enough on the South Bend.

img_1305

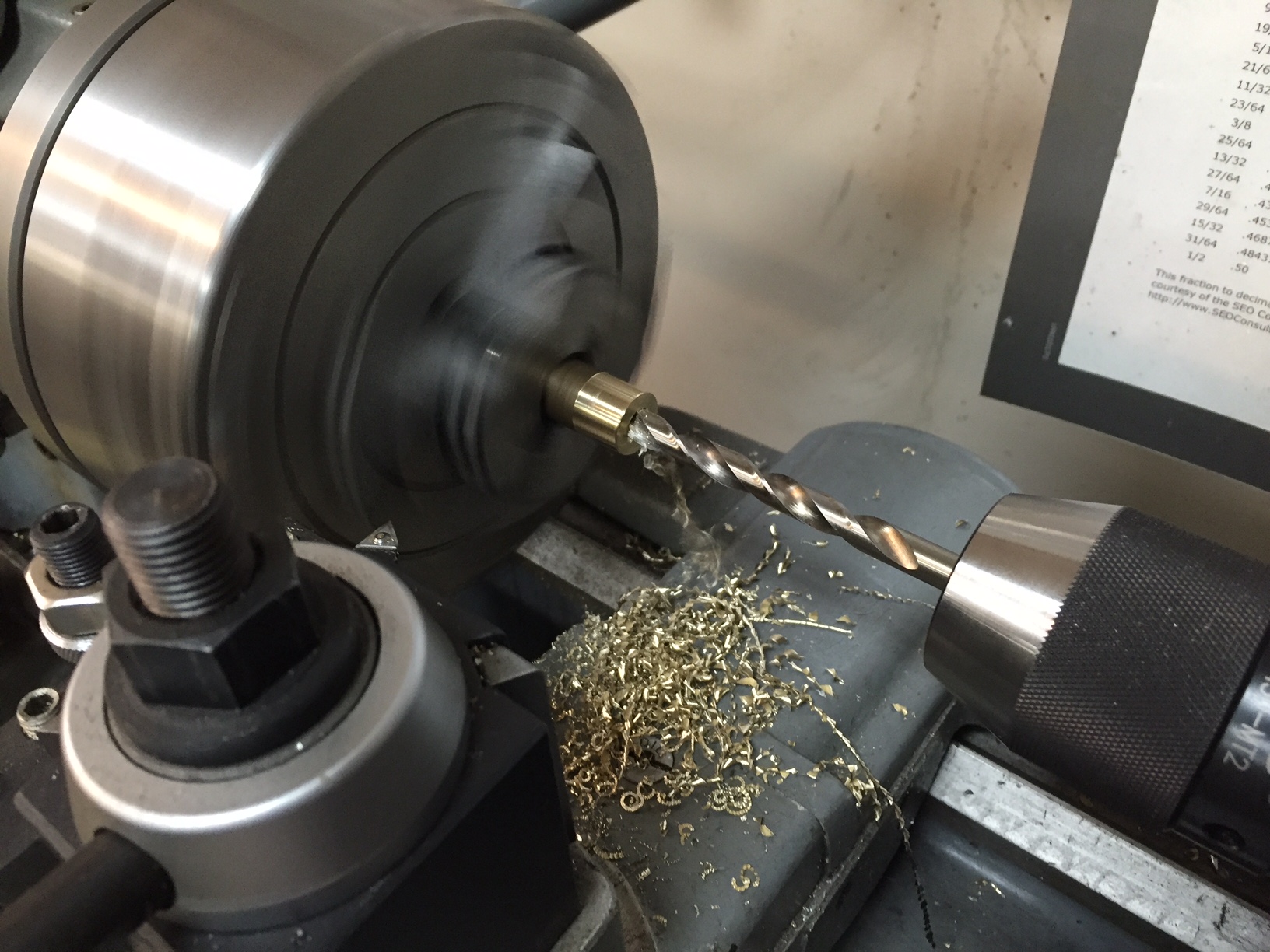

The borer needs to be 5/16″ to properly fit the shouldered bolt the bushing will ride on.

img_1306

Turn down to a press-fit outer diameter.

img_1309

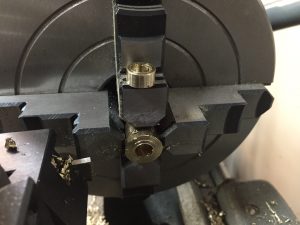

One new bronze bushing.

img_1310

New VS old, easy to see the amount of wear here.

img_1313

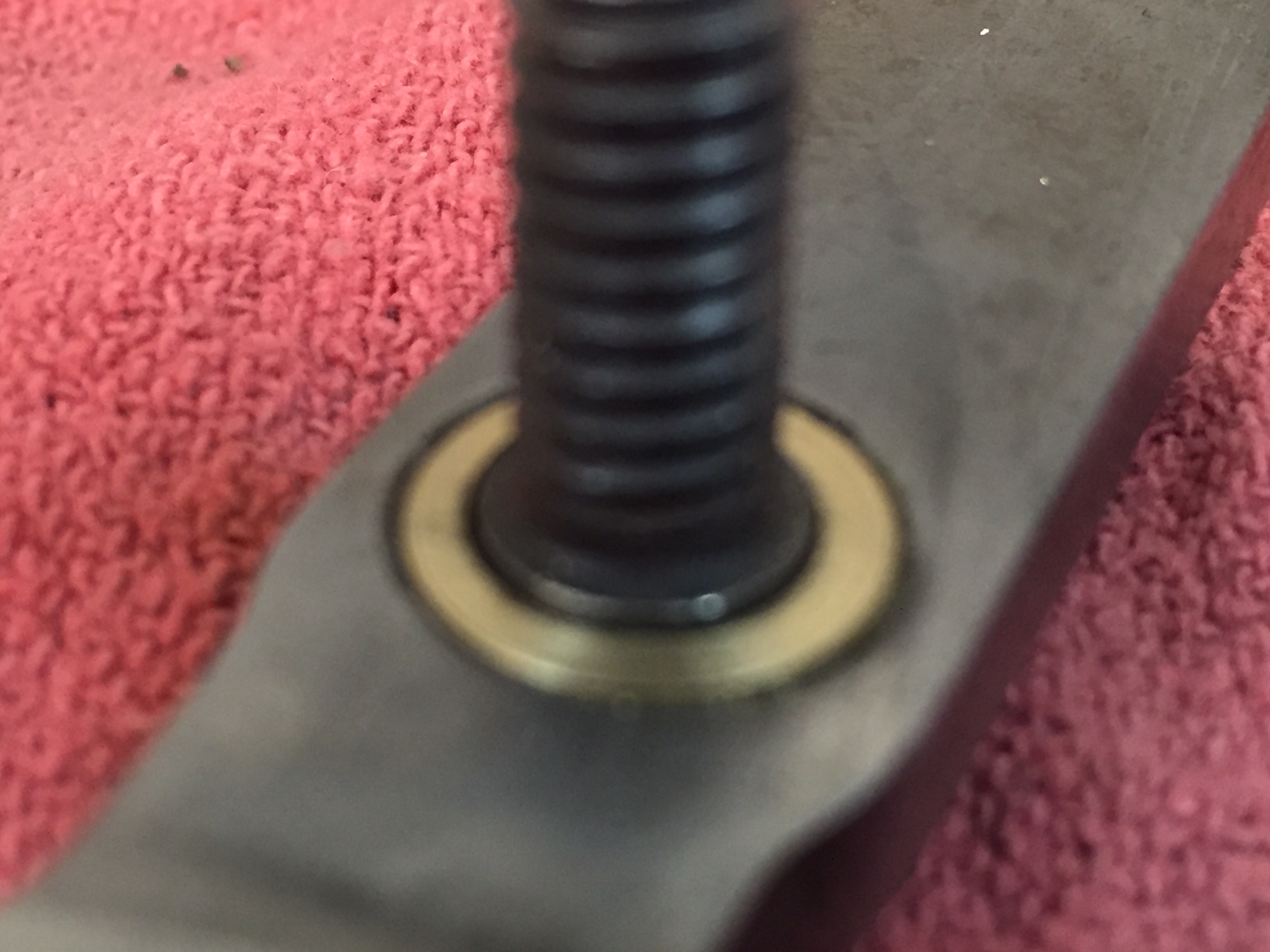

Pressed in with the shouldered bolt inserted.

img_1314

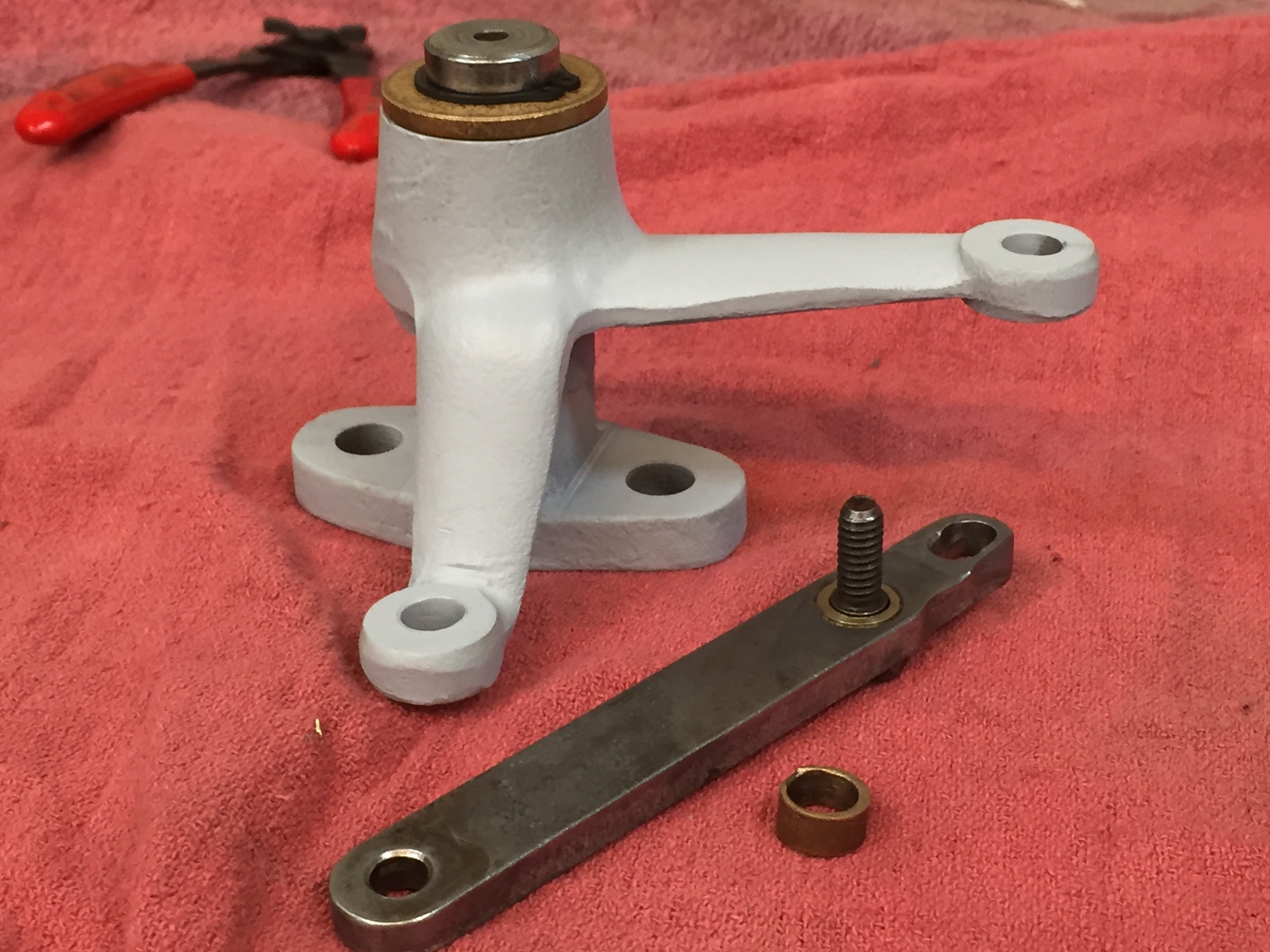

Both parts repaired and ready for paint…….lots of time invested, and a good example of a couple of small parts that usually get ignored, and will have an adverse effect on the performance of a couple of major systems on your “restored” truck if not done correctly.
