Street Tracker Update – 9 (Problem Solver Parts)

As the Tracker gets closer to being finished I’ve had to make a few parts to “finish off” some details.

IMG_0714

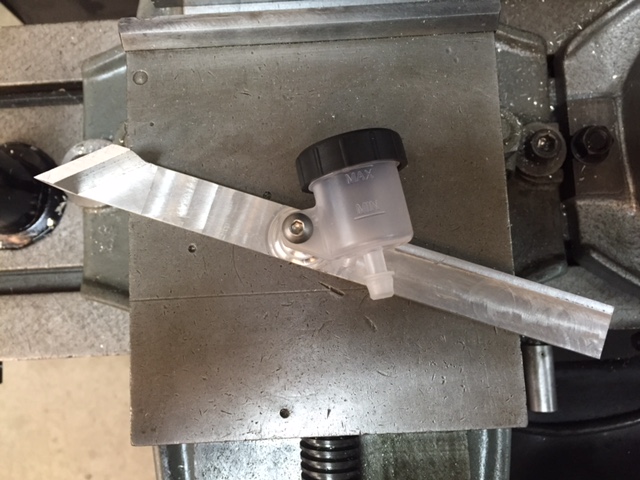

Rear exhaust support/rear master cylinder reservoir mount……….this is where the old Bridgeport comes in handy.

IMG_0715

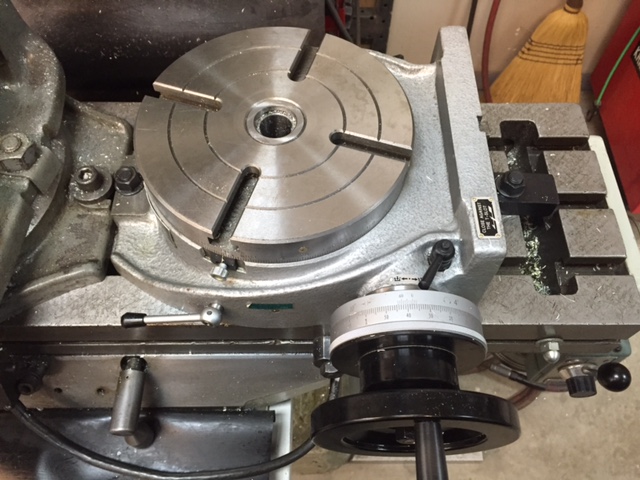

And a rotary table to make the reservoir mount.

IMG_0726

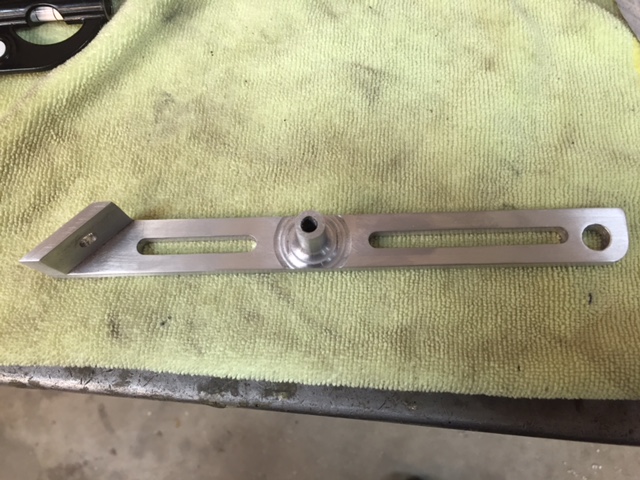

Milled and lightened.

IMG_0727

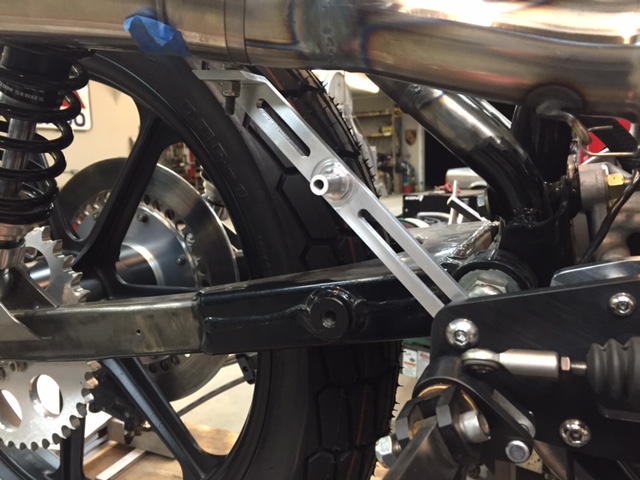

Mounts between the Chainsikle rear sets and muffler clamp.

IMG_0728

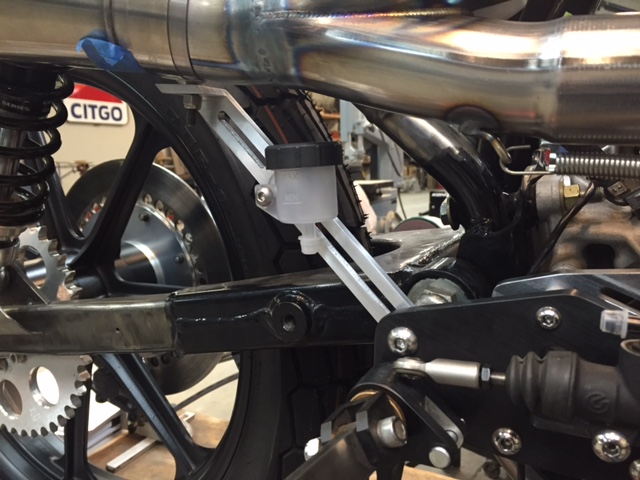

A reservoir off of a KTM 1190R.

IMG_0721

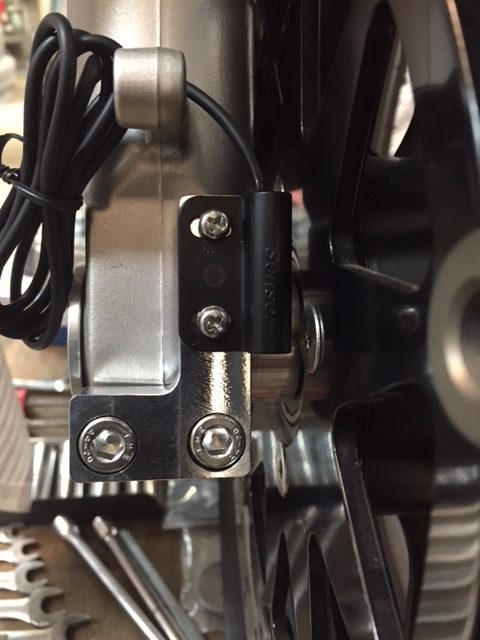

Next up was a mount for the speedometer pickup. Mounted to the lower right fork.

IMG_0720

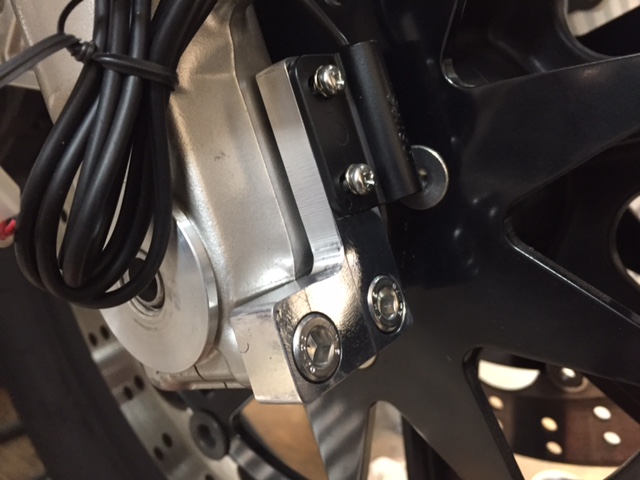

Relieved the back with a ball-end mill to match the fork contour……Bridgeport to the rescue again.

IMG_0730

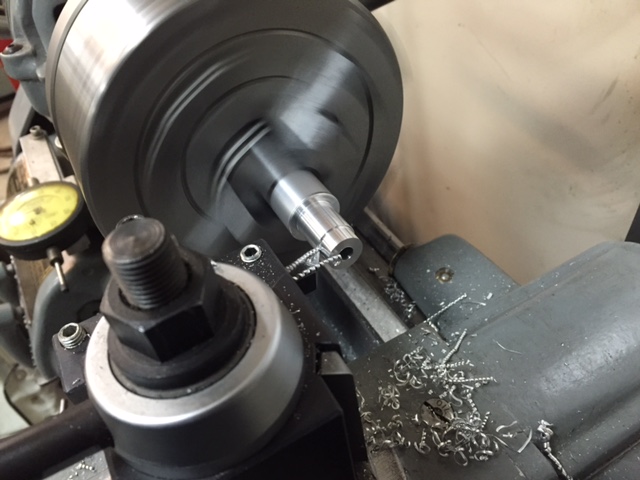

Now over to the South Bend lathe to make some head breathers that will mimic what Richard Pollock of Mule makes for some of his bikes.

*Thanks for the cool idea Richard, and please forgive the plagiarism!

IMG_0732

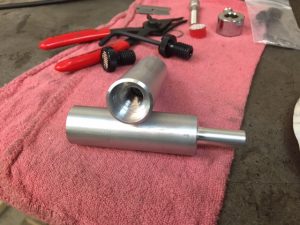

Turned down, bored, and threaded.

IMG_0719

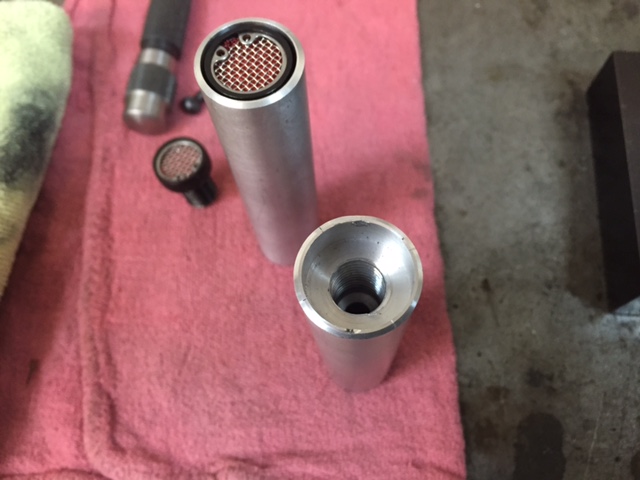

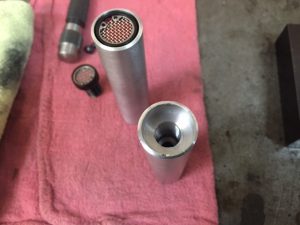

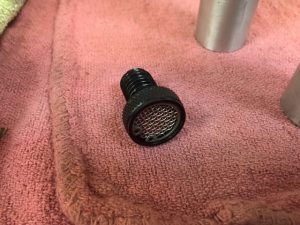

These little breathers that a lot of chopper guys use will screw into the ends of the breather tubes.

IMG_0718

Just like that!

IMG_0740

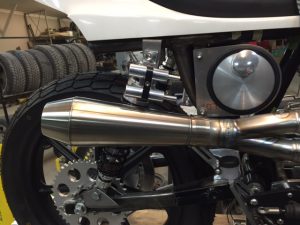

Made a hanger and mounted an Earls line separator that holds the breathers at the same incline and outward angle as the muffler.

IMG_0741

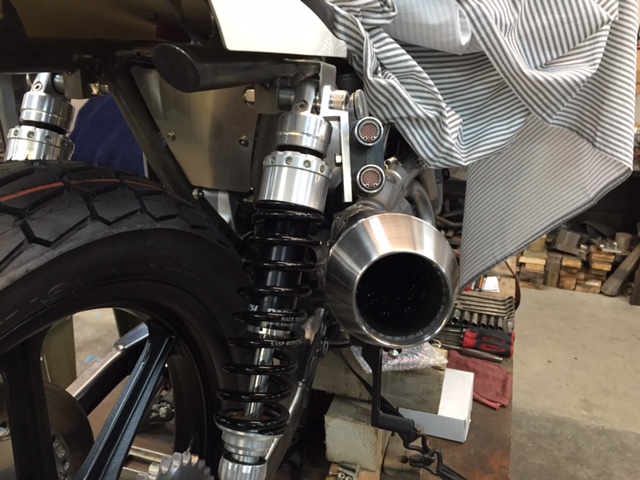

Rear view.

IMG_0742

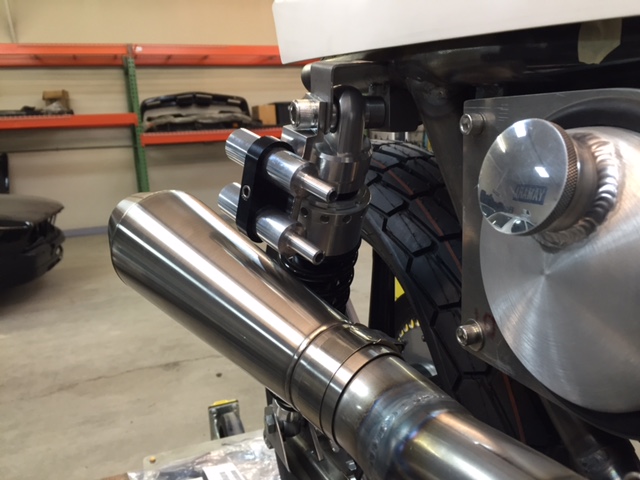

Just add some quality hose to the heads, another support mount somewhere, and done.

IMG_0734

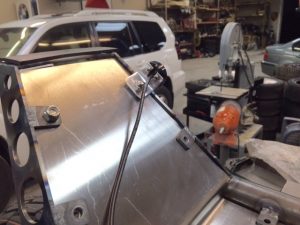

And last is the Motogadget M-Lock remote key sensor mount. This will reside just beneath the XR fiberglass seat cowl. Wave the “key” over it and the bike is turned on……keyless.

IMG_0736

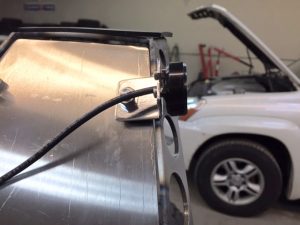

Another view.

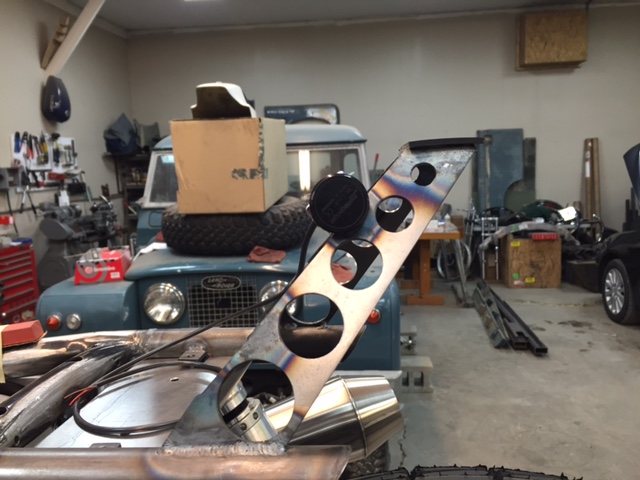

IMG_0737

Finished with the small custom parts for now……..I think.
