Street Tracker Update – 9

IMG_0607

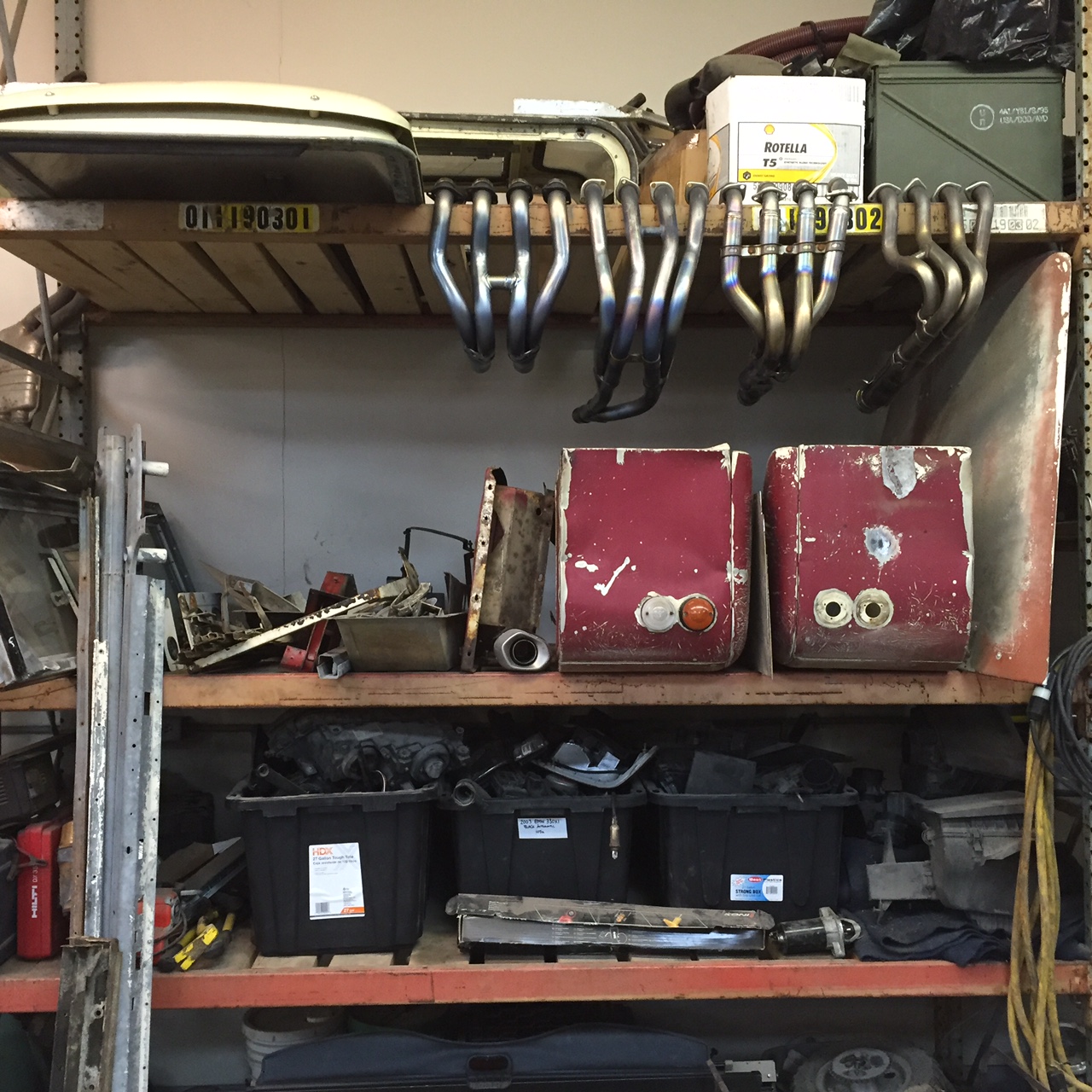

Time to make an exhaust……see those headers on the top shelf? Not using any of those……yet.

IMG_0619

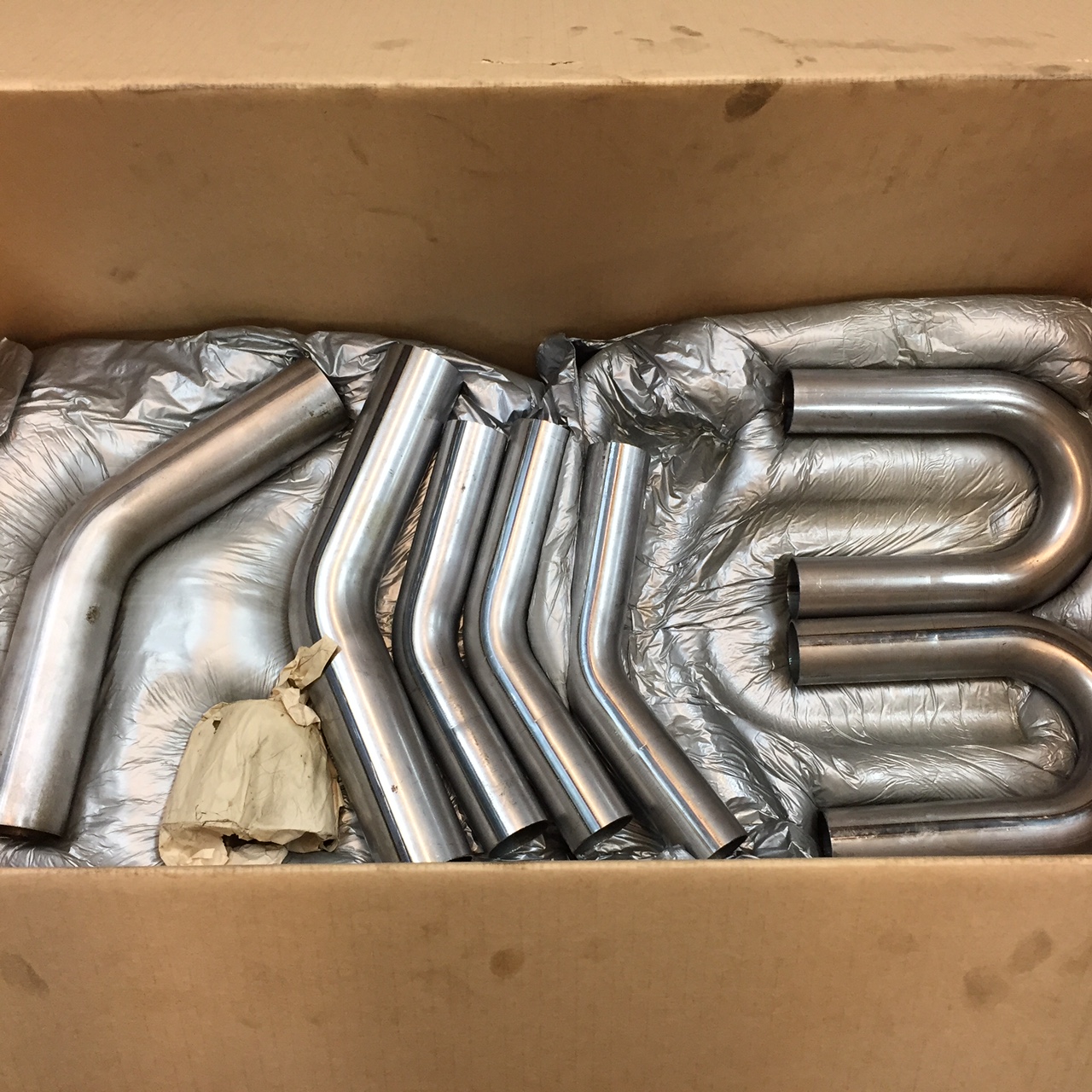

Ordered up a couple of boxes of bends from Cone Engineering.

IMG_0625

Cone Engineering

IMG_0618

Says it all.

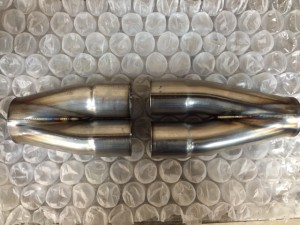

IMG_0664Also a 2-into-1 collectors from SPD Exhaust……REALLY nice stuff!

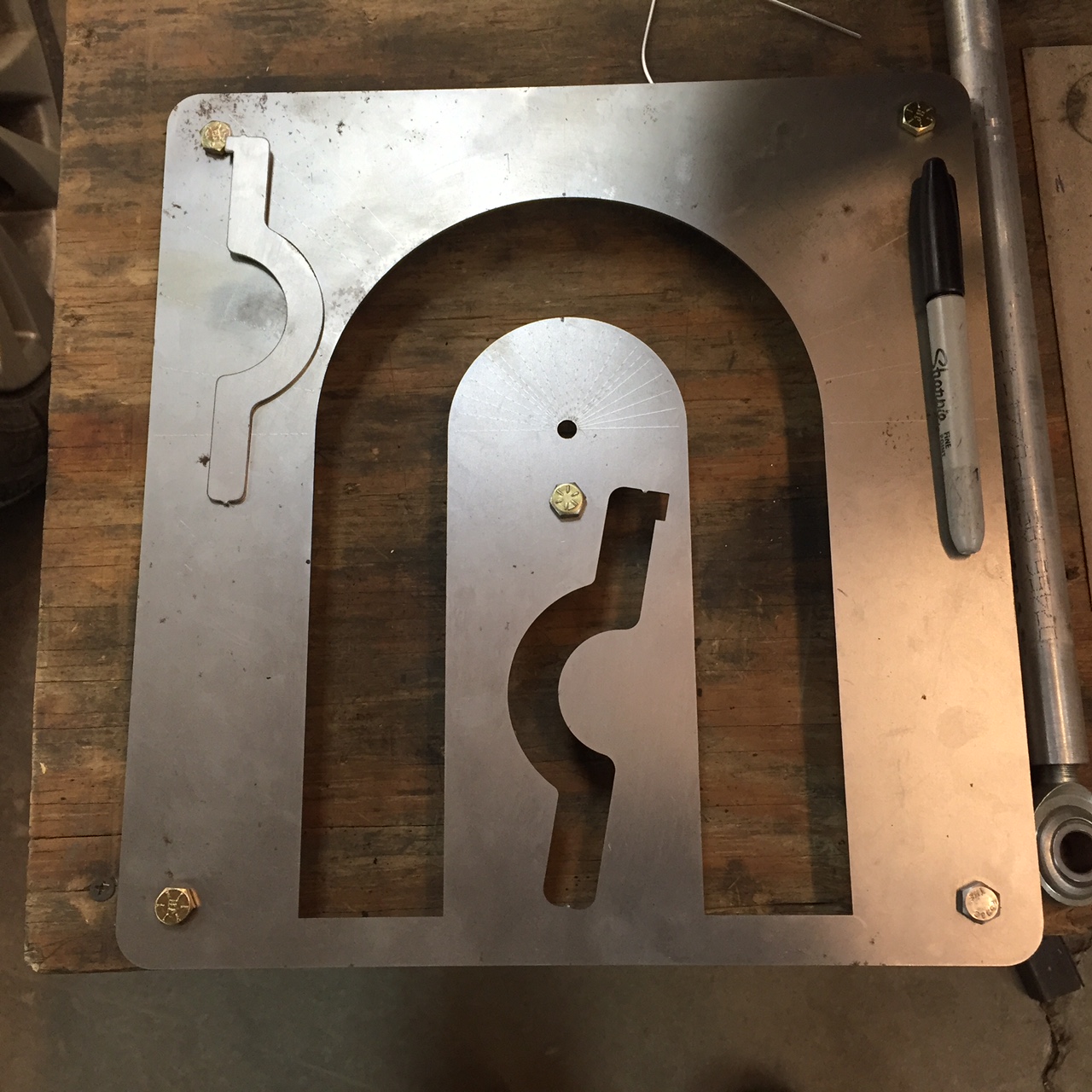

IMG_0620

Got this from Cone too….helps mark where you want to cut the bends.

IMG_0692

And there’s a fair amount of cutting involved.

IMG_0668

Really helps to have one of these to…..Tig welder.

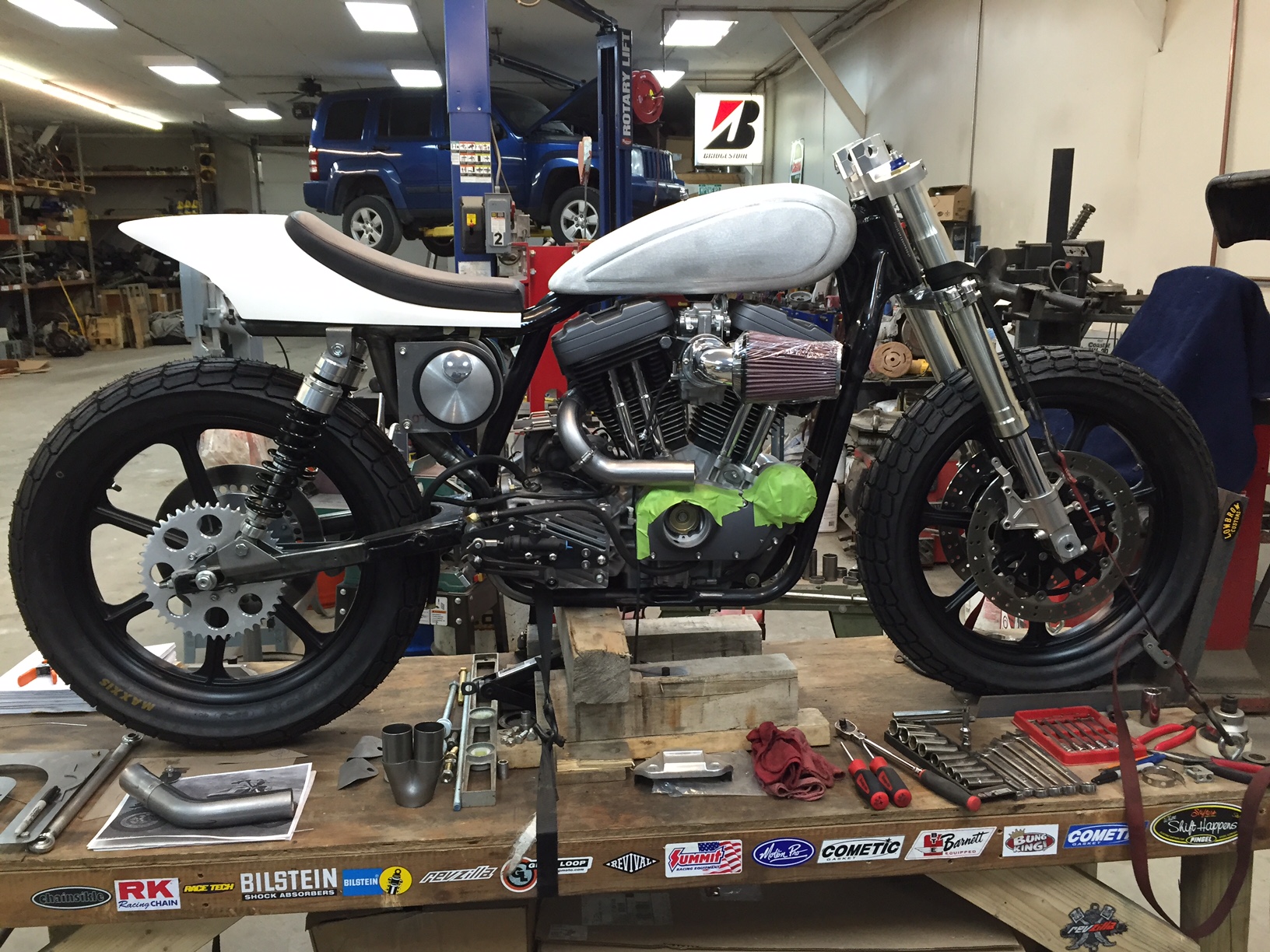

IMG_0661

Gotta start somewhere…..the rear pipe placement was dictated by the lines of the engine, especially the timing cone, so that’s where I started. The front pipe will loop down close to the oil filter housing then come up on top of the rear pipe and hopefully be parallel.

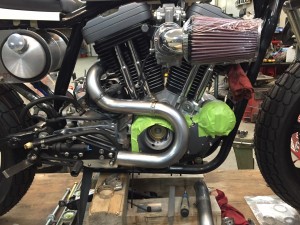

IMG_0670

Notice the stainless hose clamps with punched holes……another Richard Pollock recommendation. Once you’re happy with fit and location, sneak that tig torch in there and tack the seams through the punched holes.

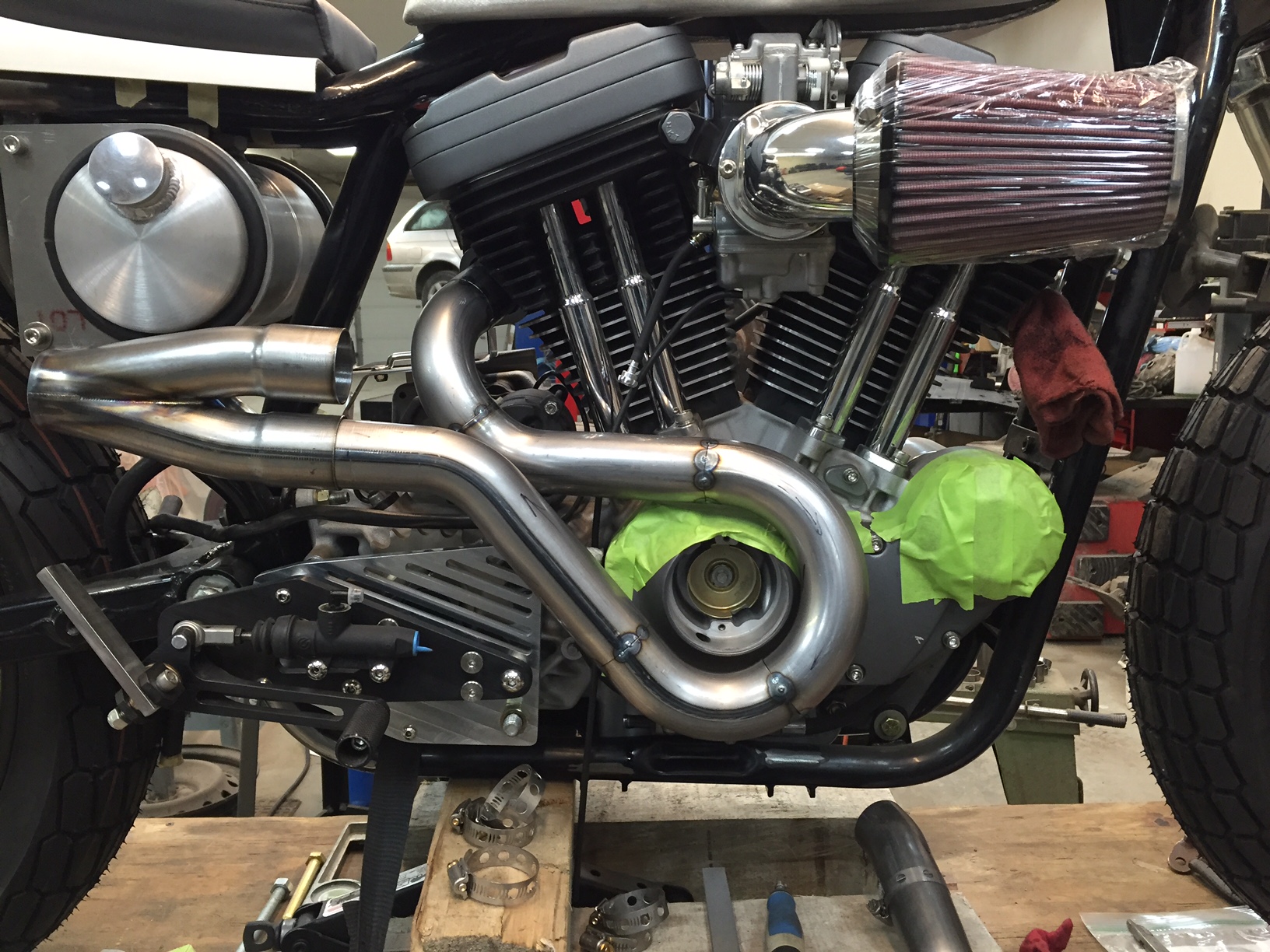

IMG_0676

One pipe down……love the SPD collector.

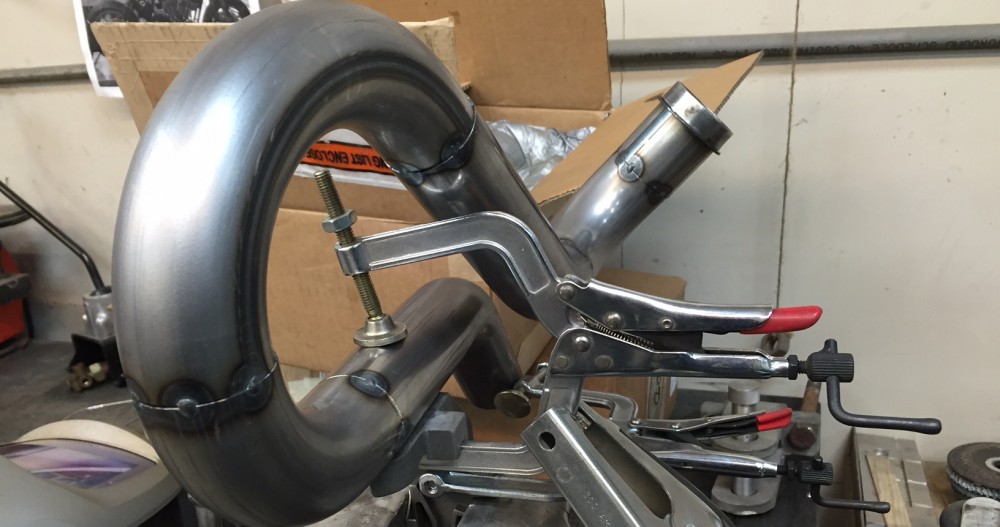

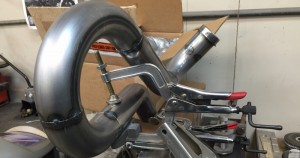

cropped-IMG_0674.jpgRear pipe in the vice for a few more tacks just to make sure nothing lets loose.

IMG_0684

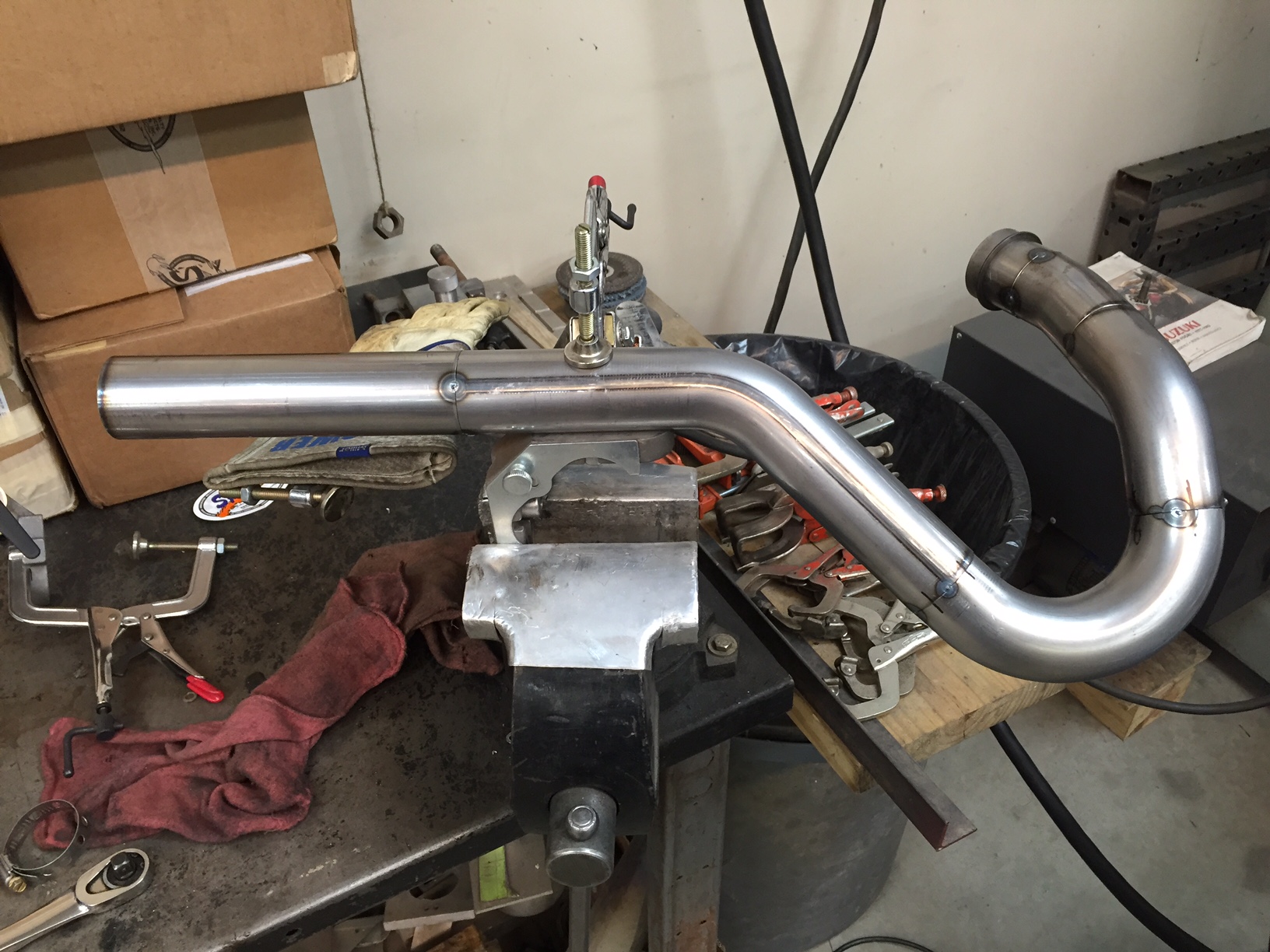

Front pipe is a bit less complicated than the rear, the difficult part is making sure it lines up with the collector.

IMG_0680

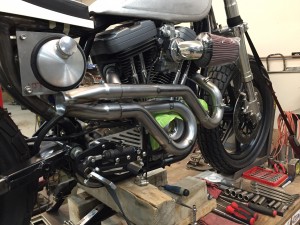

All lined up.

IMG_0696

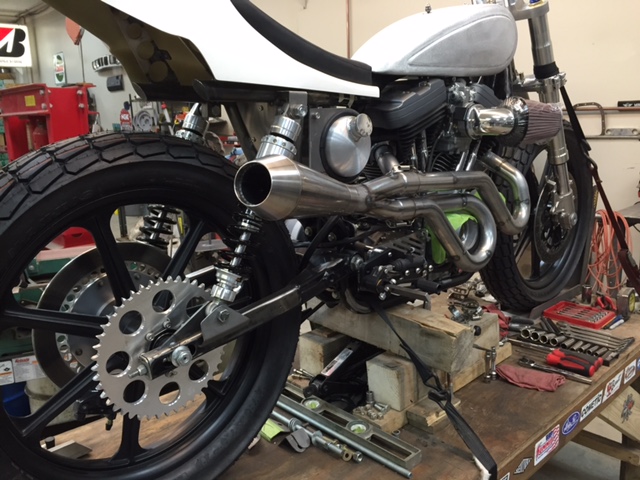

A stainless reverse cone to end things.

IMG_0700

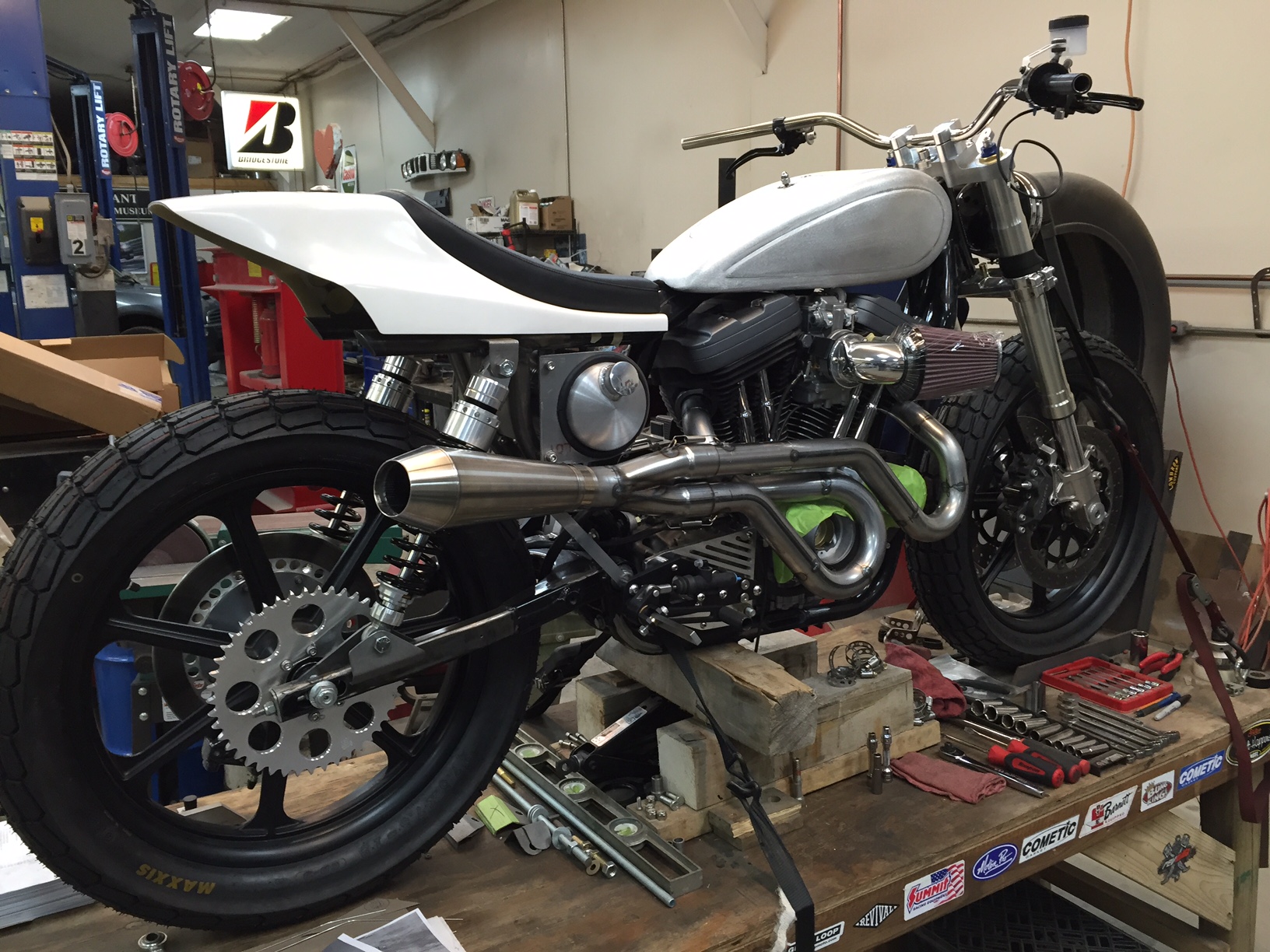

Springs in place to hold the slip on collector in place, and stainless bracket to support the weight of the system. Now it’s off to the bench to do the final tig welds……that will only take a day…..then to a local speed shop that does ceramic coating. I don’t even want to talk about the time invested here!

7 Replies to “Street Tracker Update – 9”

  1. Sorry for all the questions.But tracker builders are of a few.

    Do you have a projected weight ? id like to know the weight when finished
    Are you running turn signals ? and a full size head light?
    Our builds are very similar, I’m running a glass tank, I may do oil tank under fuel tank (if i can fit it) and my rear rotor is not solid its a flat track wave rotor.
    Thanks
    ACE

  2. No projected final weight, an educated guess would be maybe 30lbs lighter than stock……lots of steel has been replaced with aluminum. Using the stock headlight with a Mule/Joker Machine mount. I really like the oil tank in the frame backbone if you have the room…..very cool.
